Description

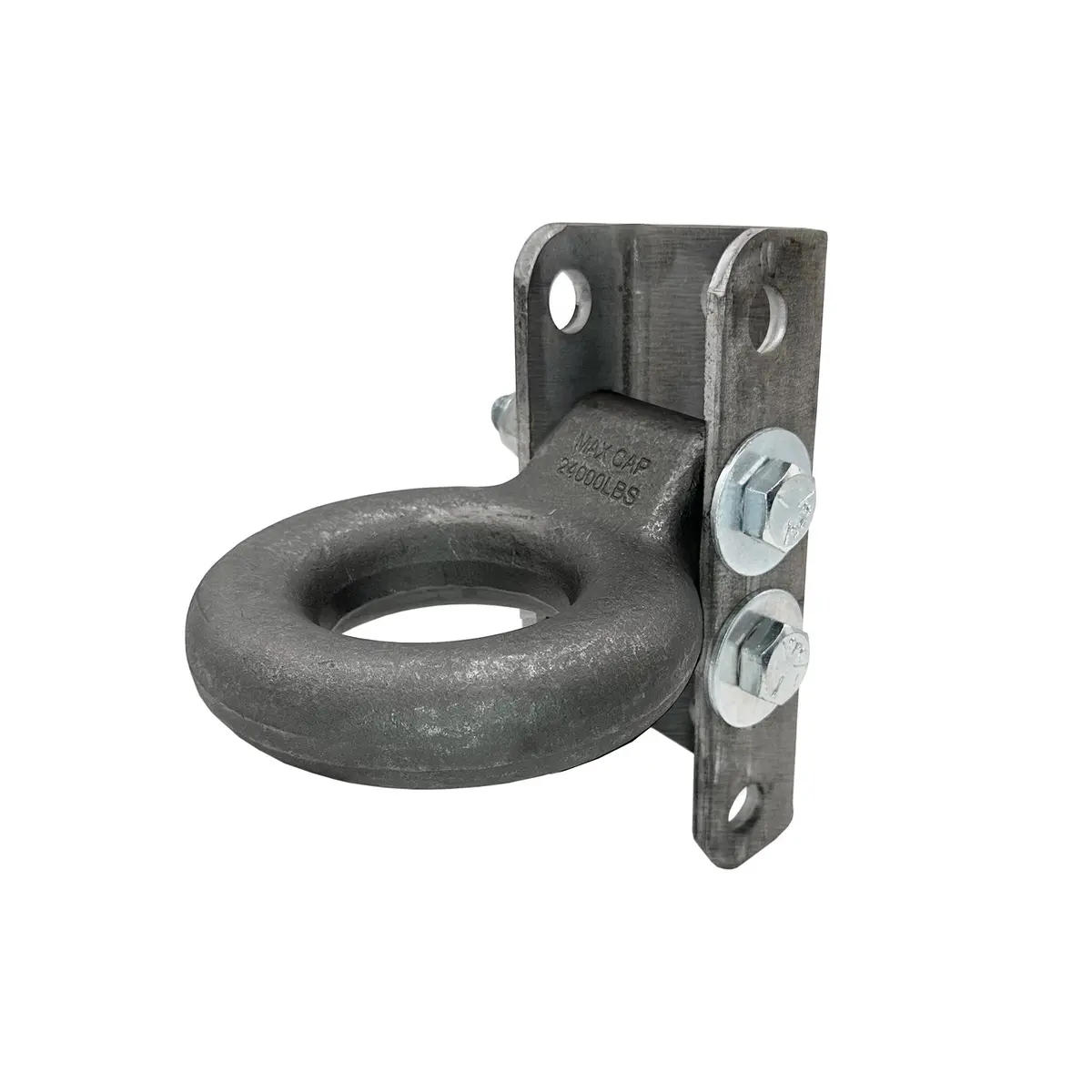

4 Hole, 3-Position Channel & 14,000 lb Ring
Channel and Lunette Ring are made from heavy-duty formed steel with a raw metal finish. Ready to be welded onto your trailer!
- C Channel Bracket
- 7-3/4″ total height
- Inside width of 3″
- Easy adjustment with multiple holes spaced 2″ apart on-center
- Lunette Ring
- 7-1/2″ total length
- Inside diameter of 3″
- Fits a variety of pintle hitch attachments, and can be coupled to most pintle hooks and ball and pintle combinations
- Rated to tow 14,000 lbs (gross trailer weight)

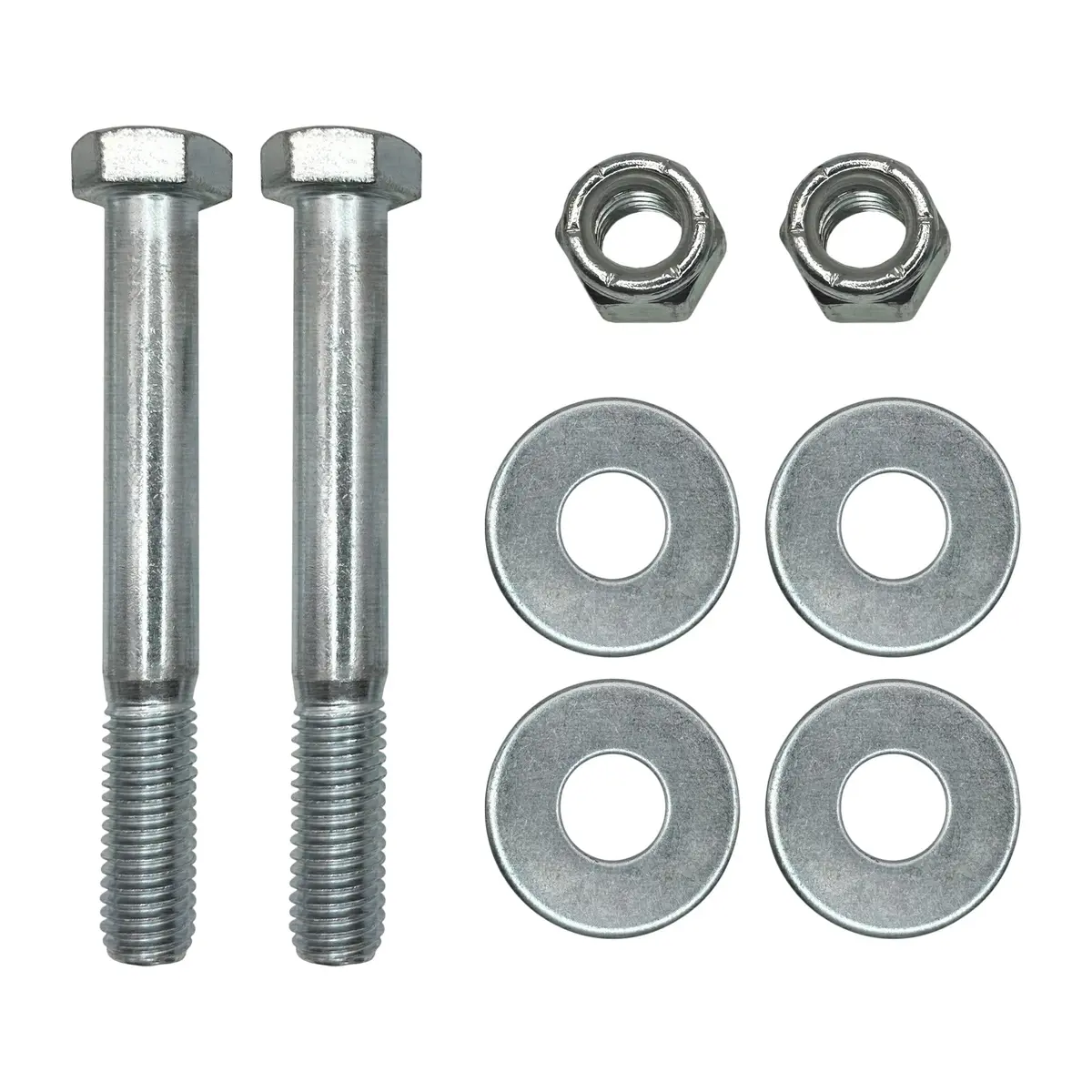

- Hardware
- Made from hardened steel with a zinc finish
- Grade 8
- 2x 5/8″ x 4-3/4″ hex bolts
- 2x 5/8″ nylon hex nuts
- 4x 5/8″ flat washers
- Check out our other Bracket and Lunette Ring options: 3-Position & 24,000 lb set, 5-Position & 24,000 lb set, 5-Position & 14,000 lb set
- Just need 1 of these parts? We’ve got you covered! Check out our 5-Position or 3-Position Channel and our 24,000 lb or 14,000 lb Lunette Ring or just the Hardware!
