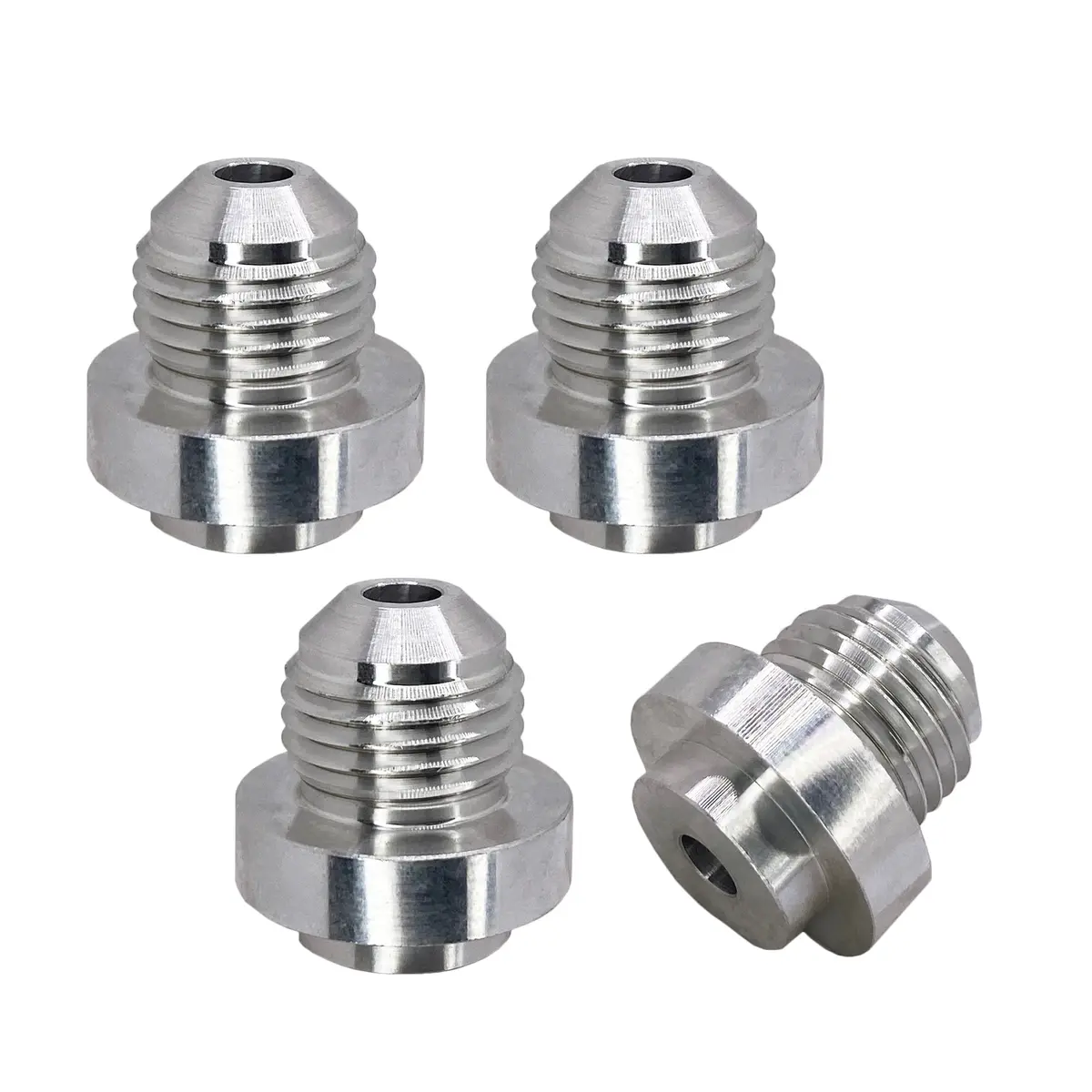

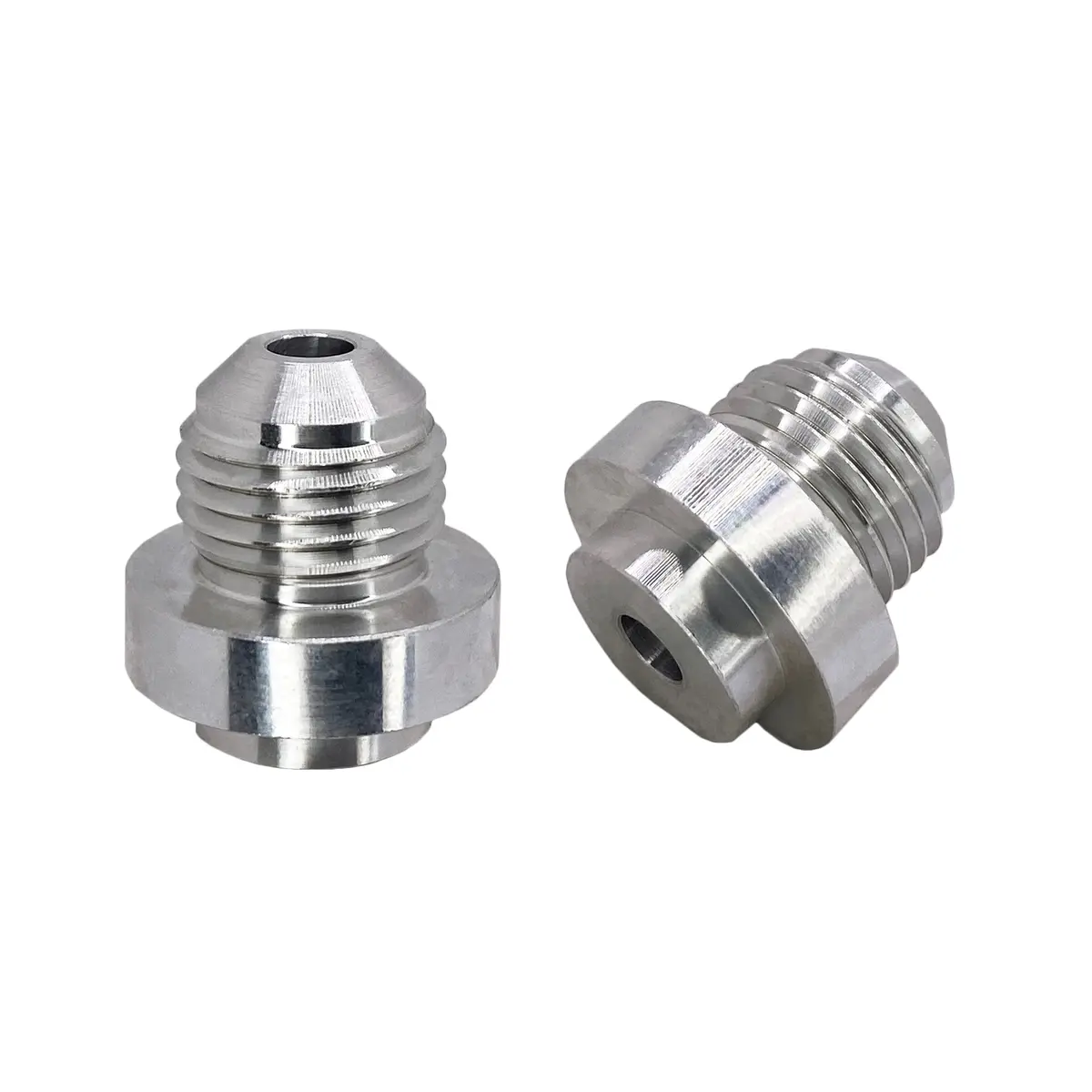

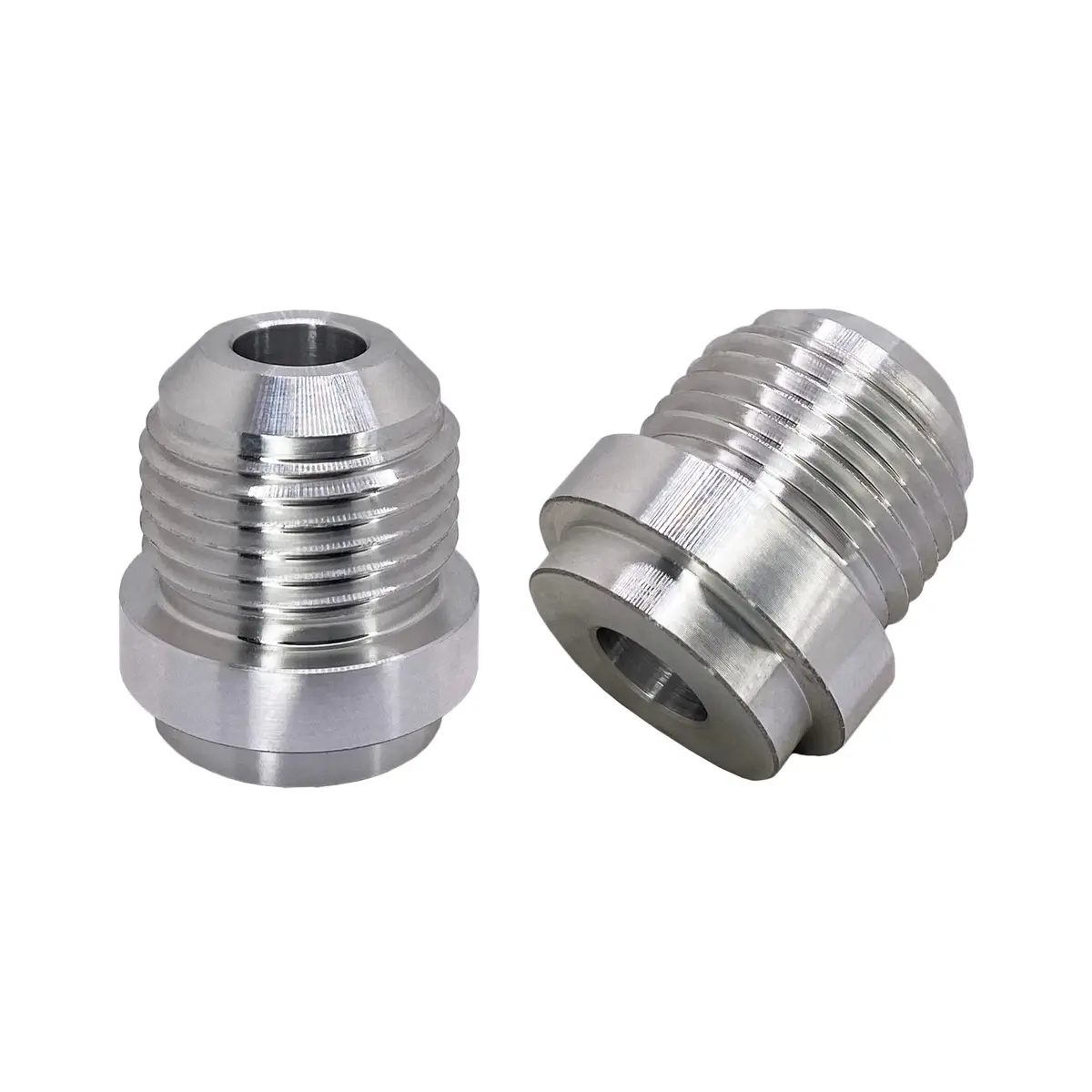

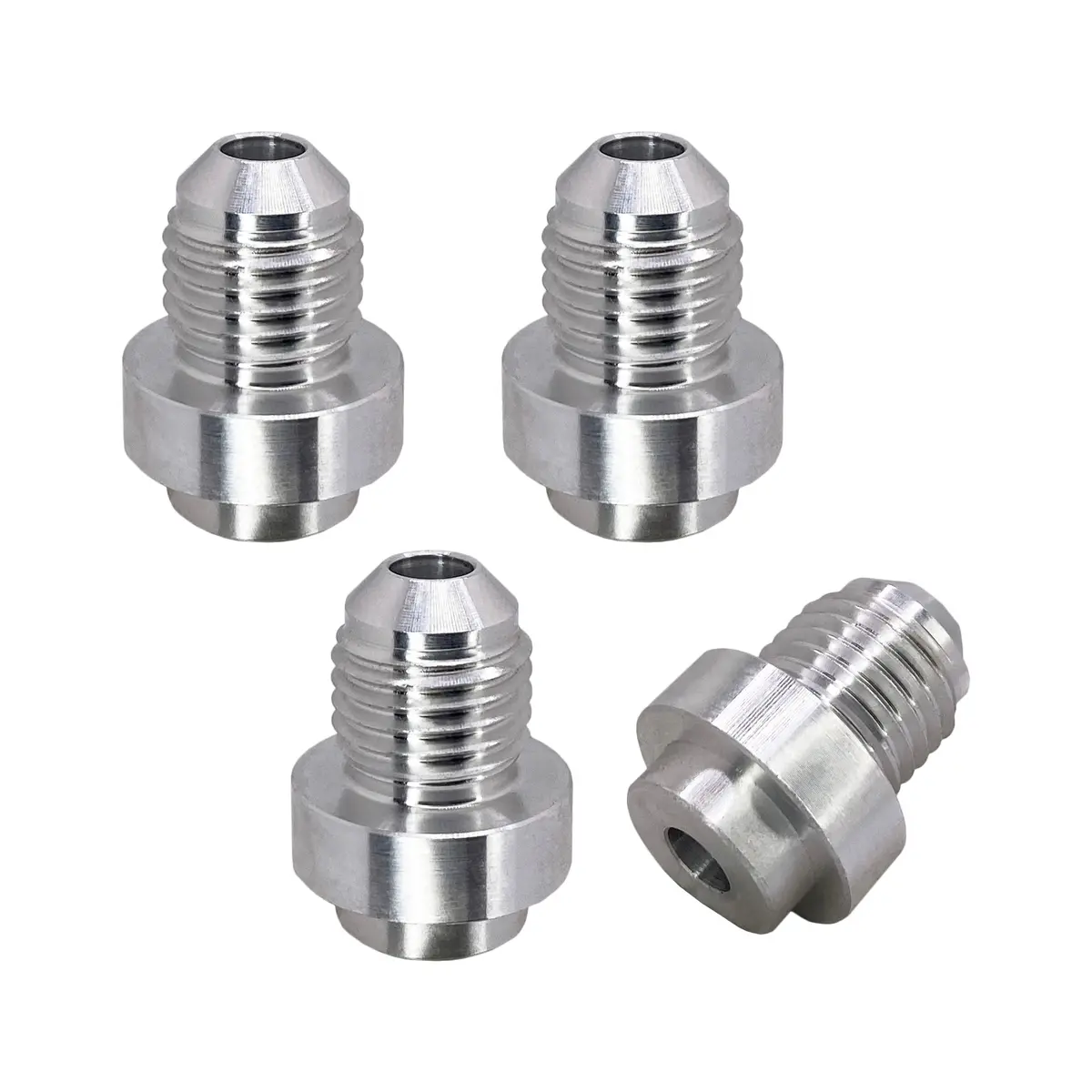

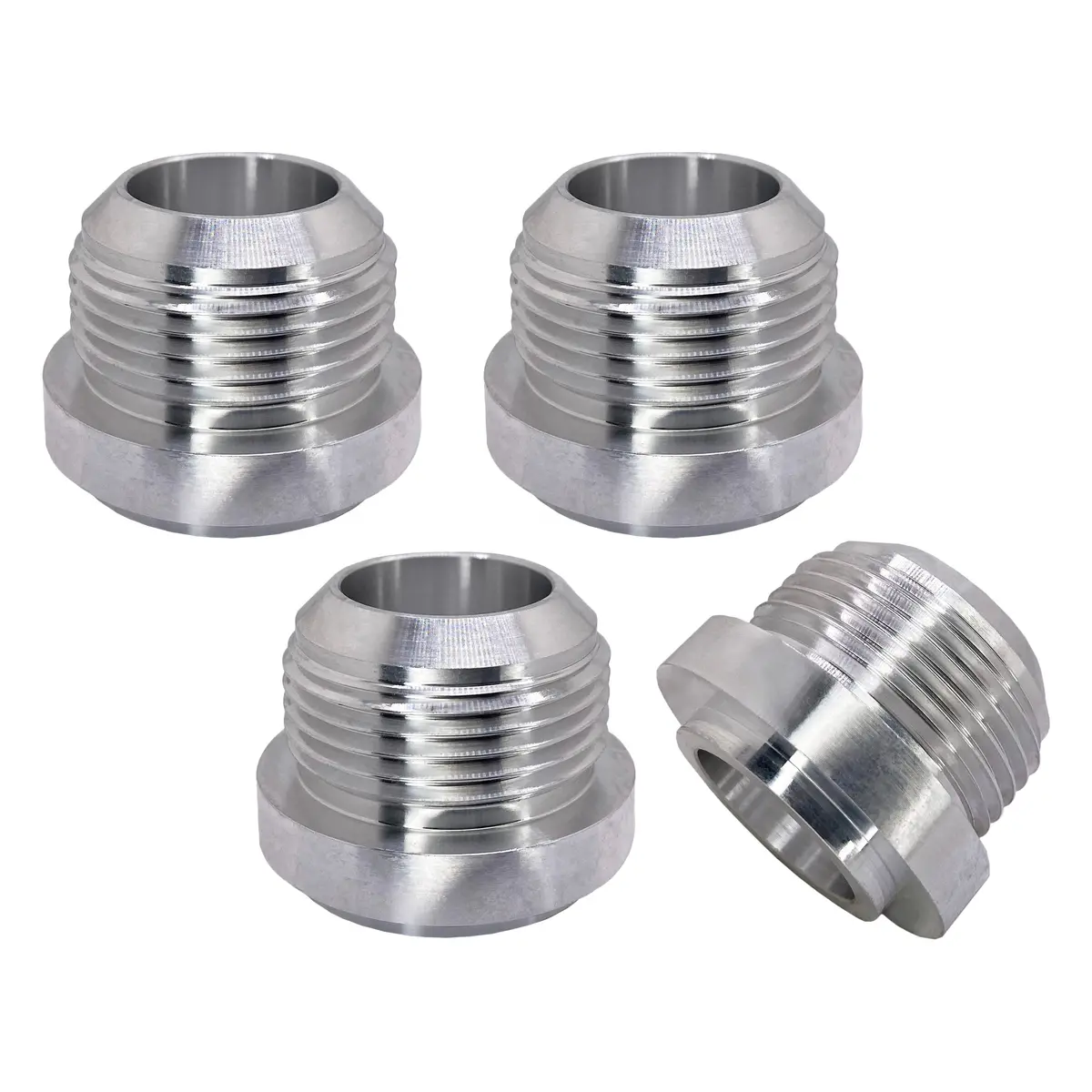

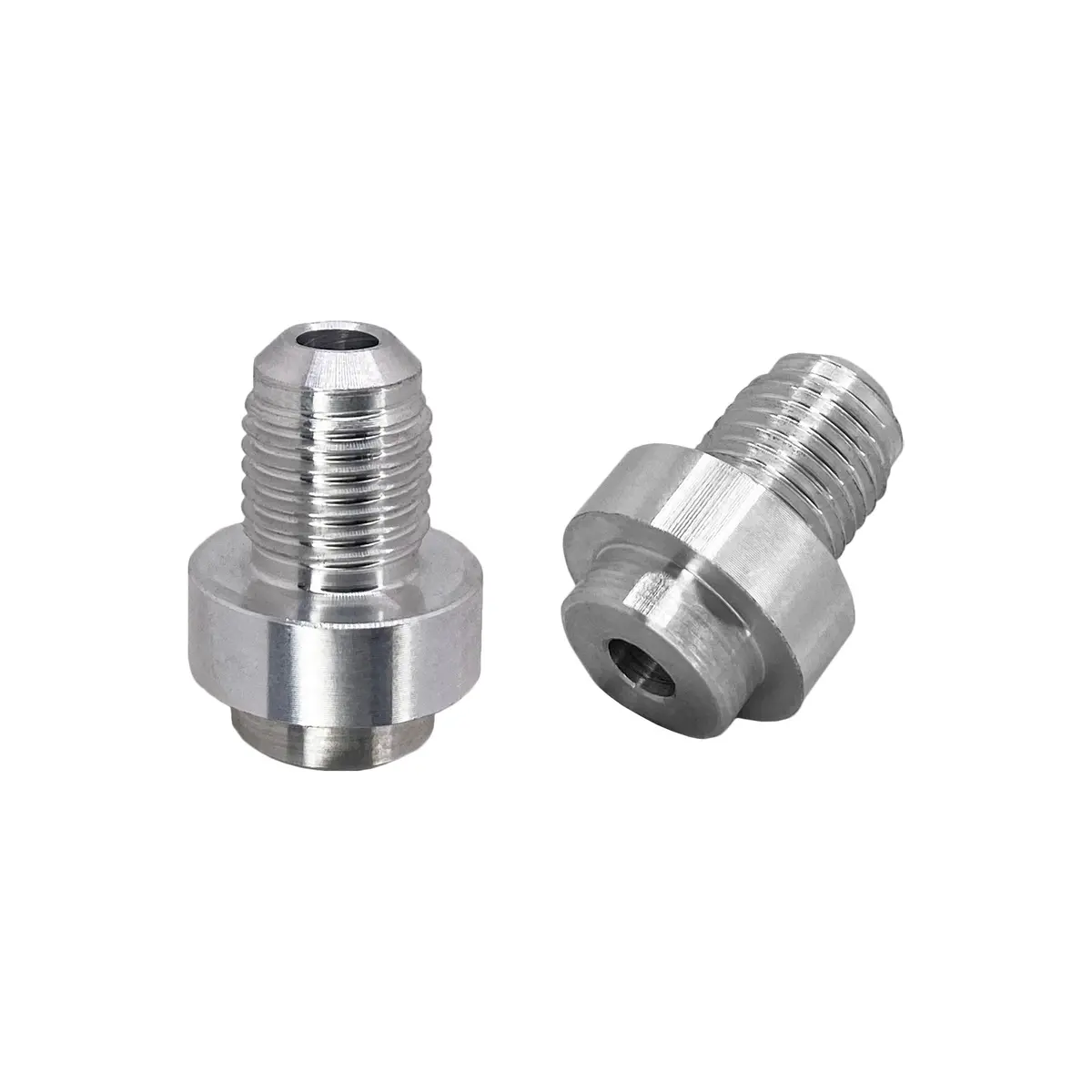

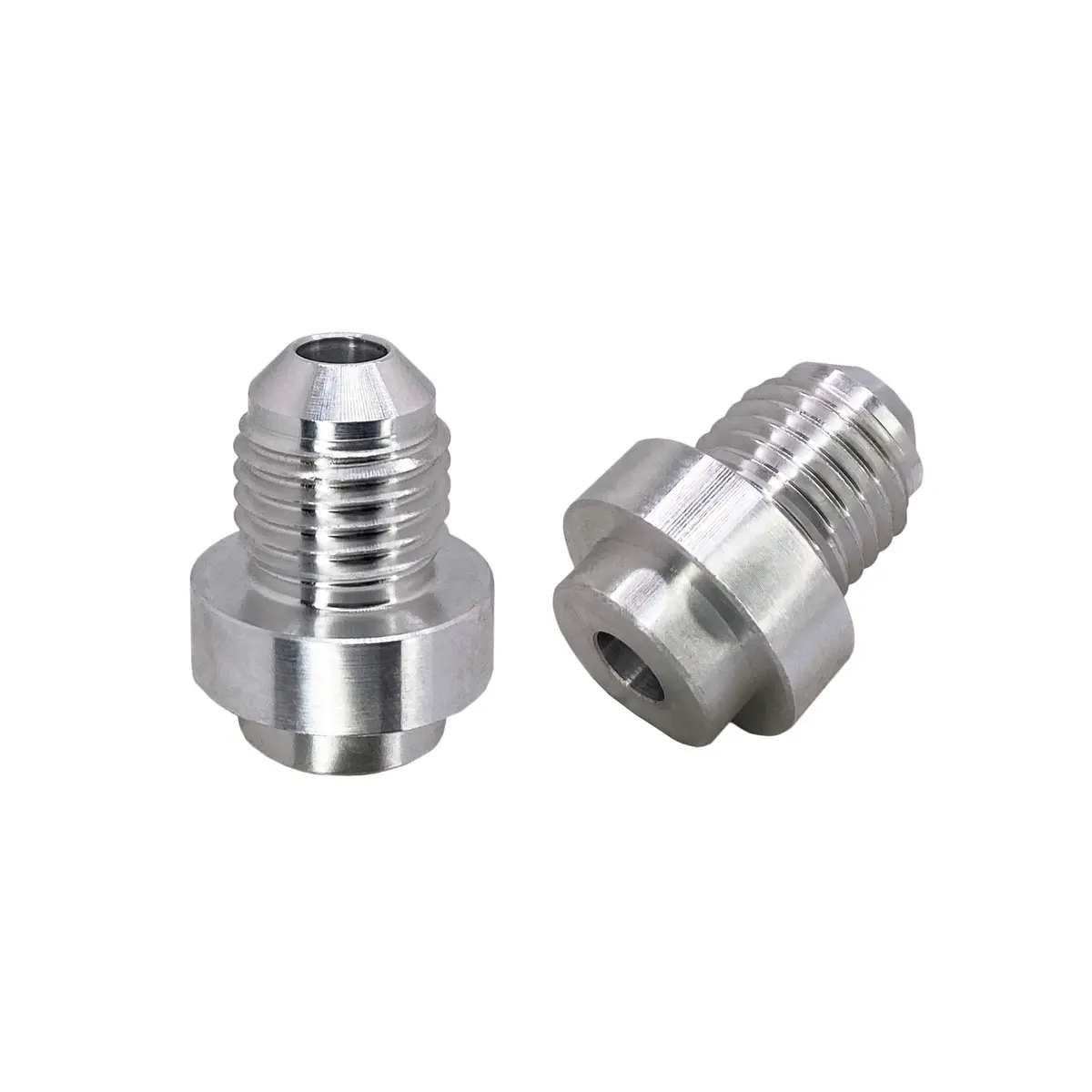

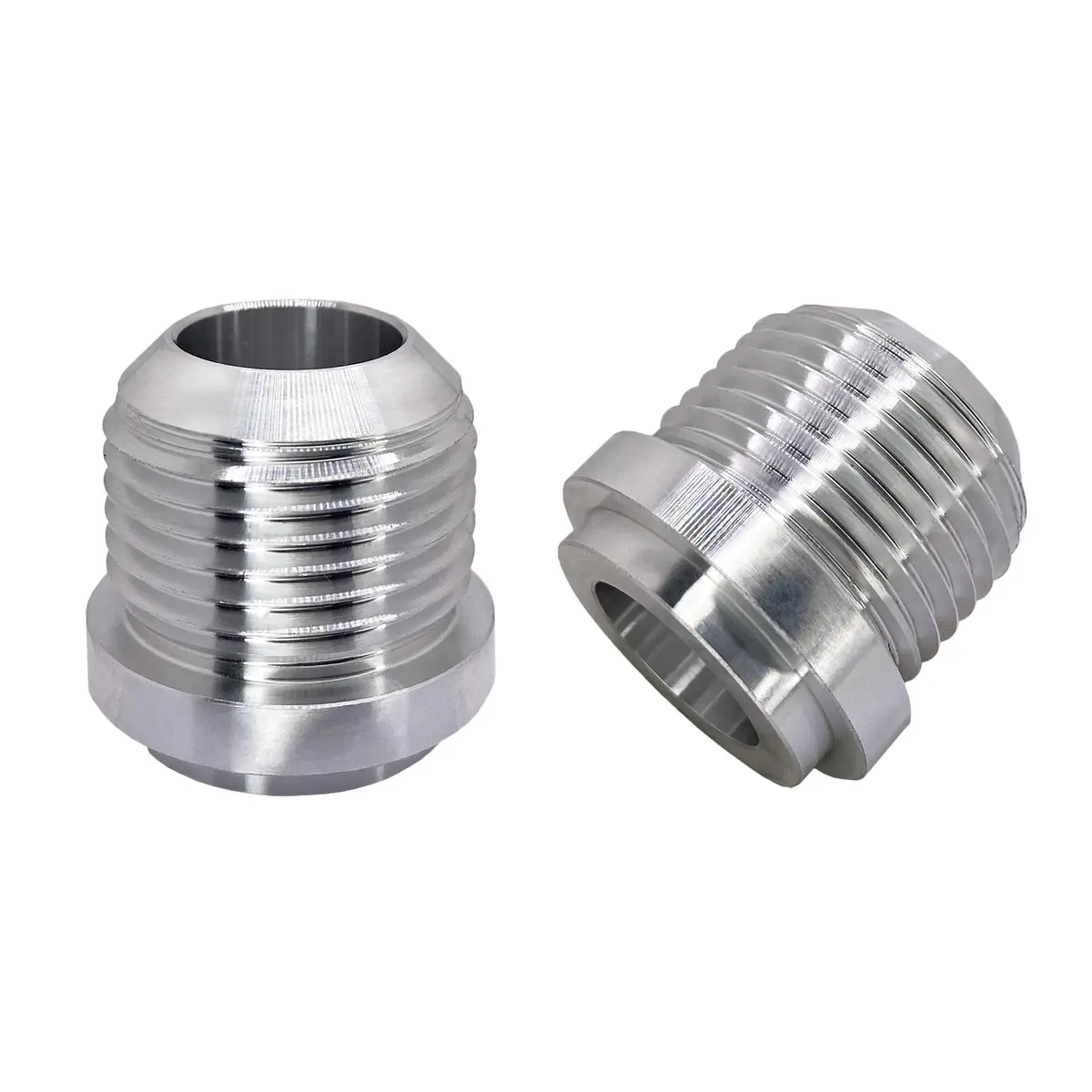

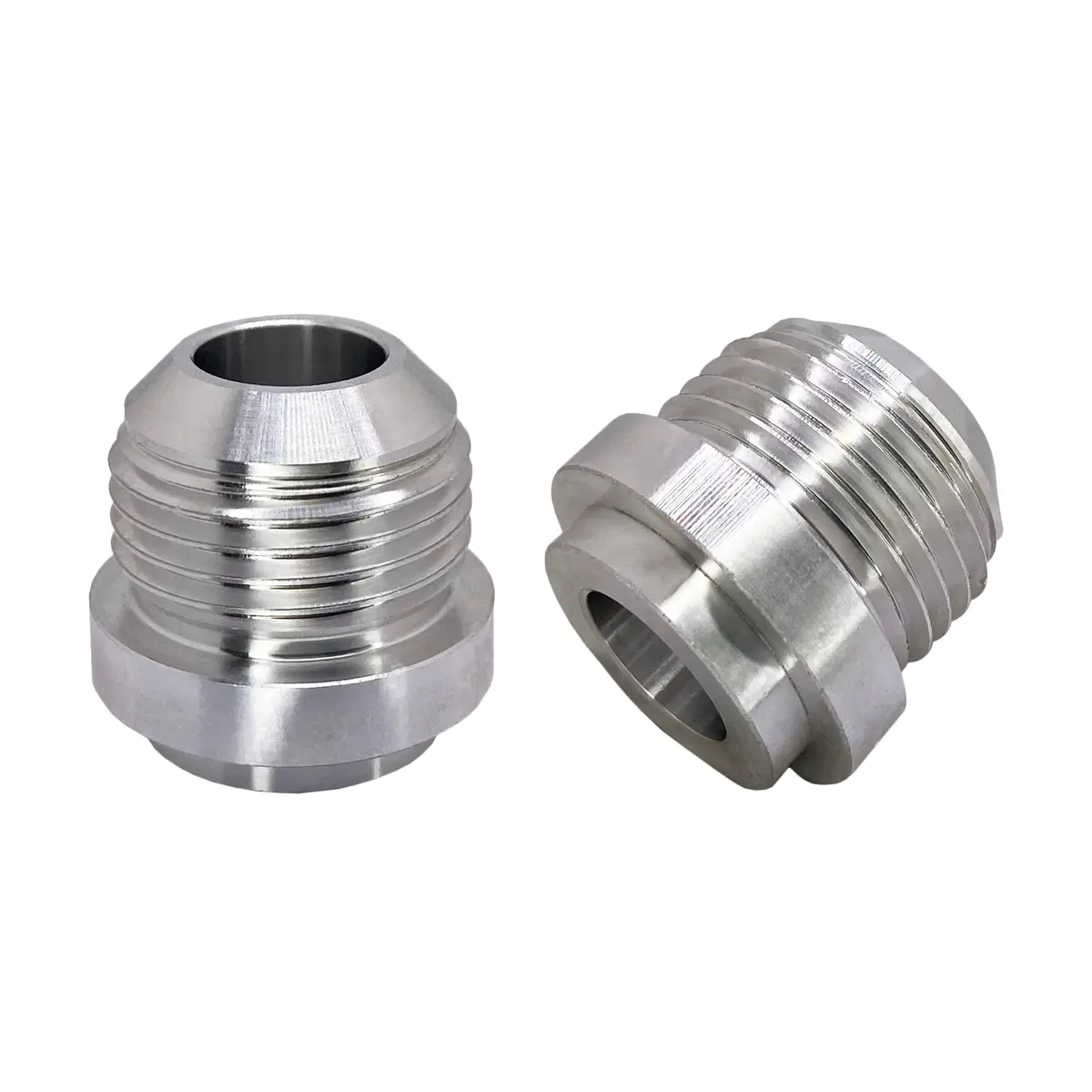

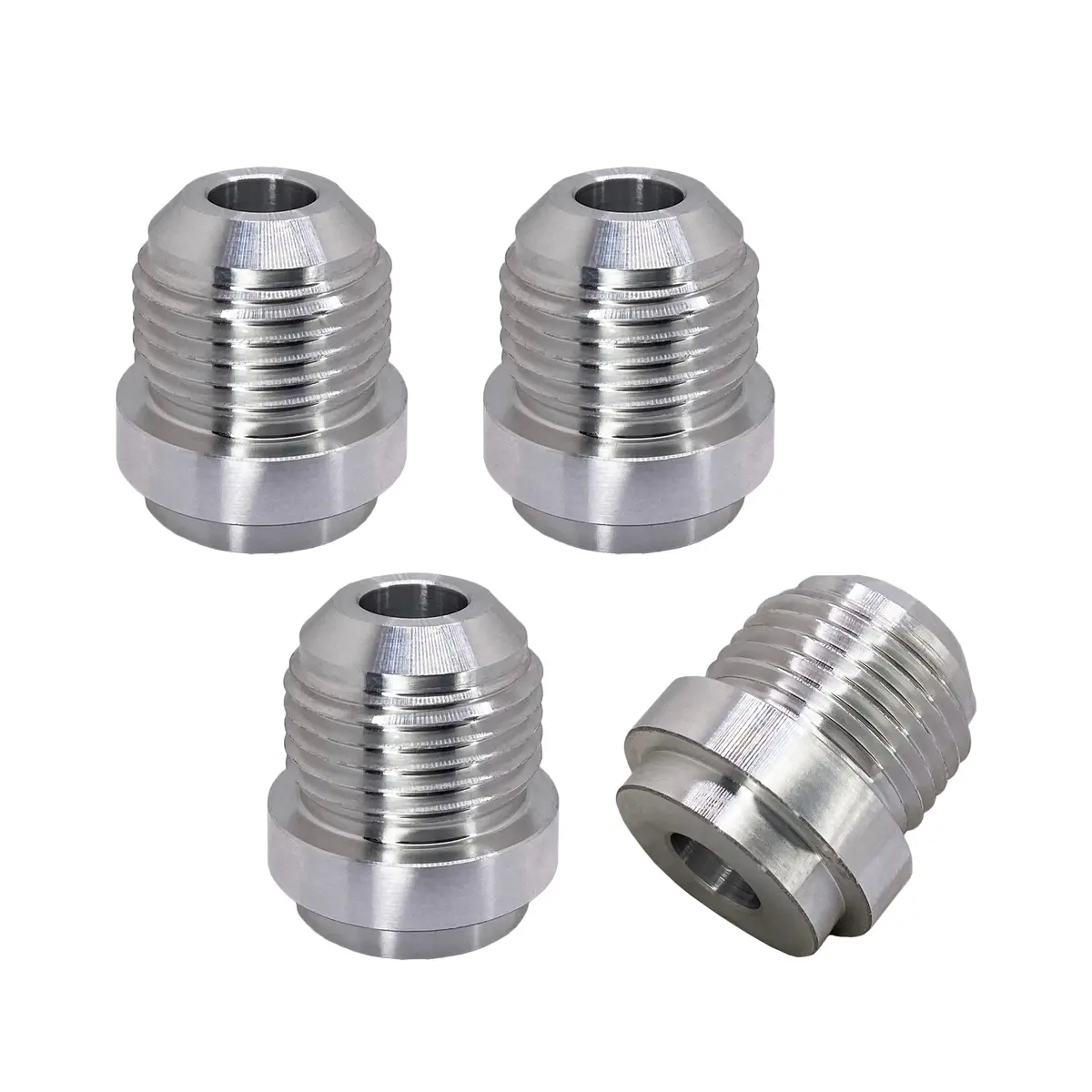

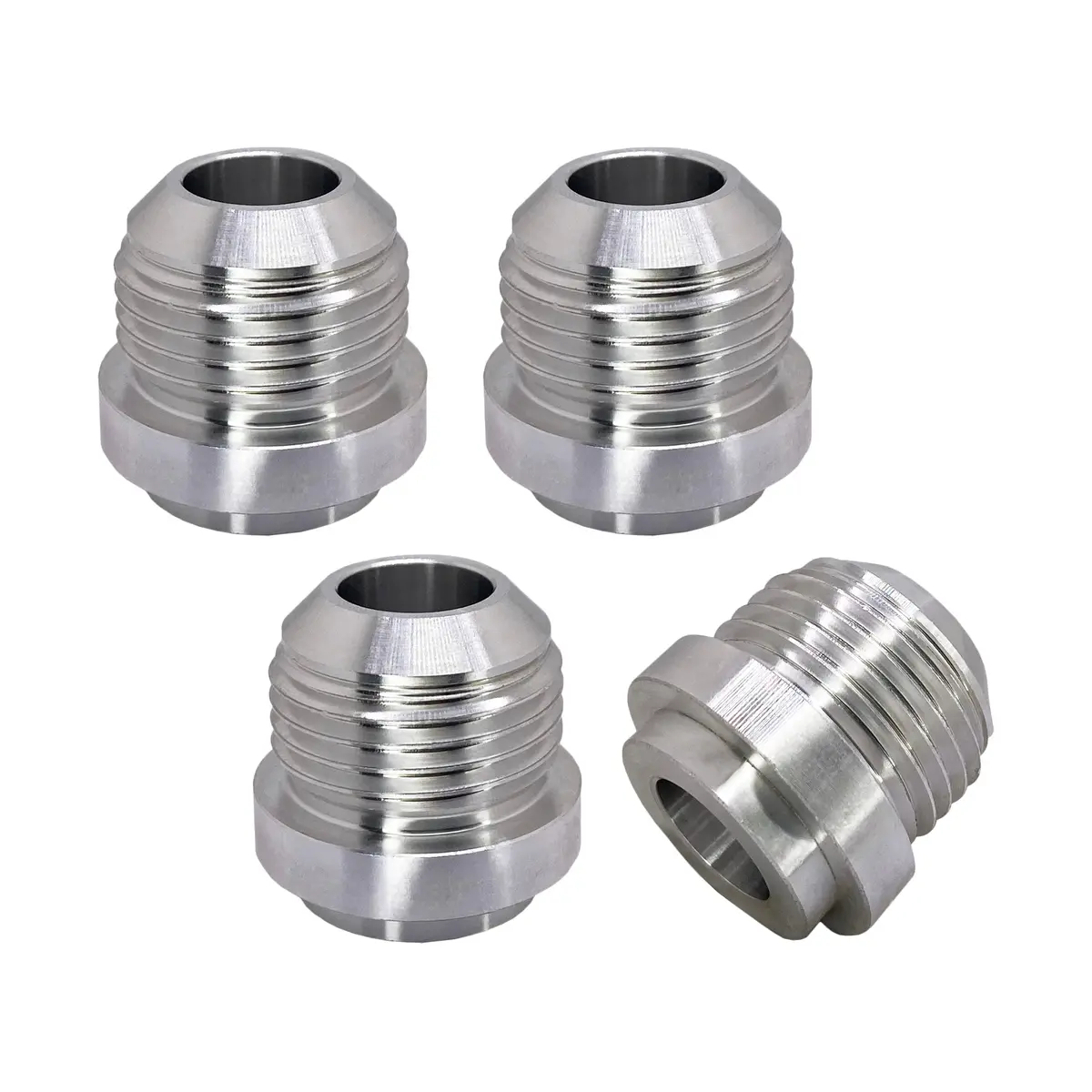

Aluminum AN3–AN20 Weld-On Fuel Tank Bung – Male Flare Fitting with Threaded Hose Adapter

Description

Aluminum Weld On Bungs

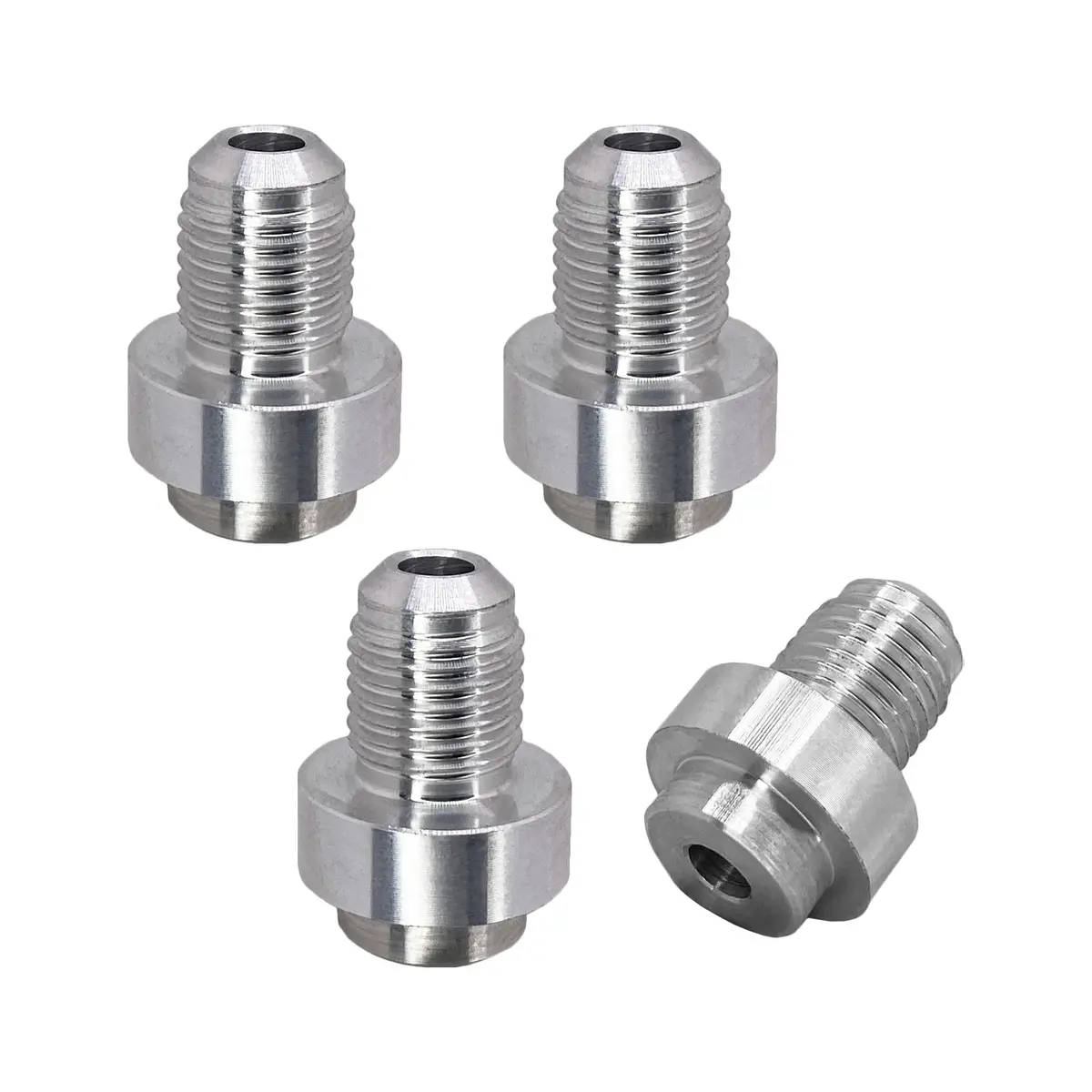

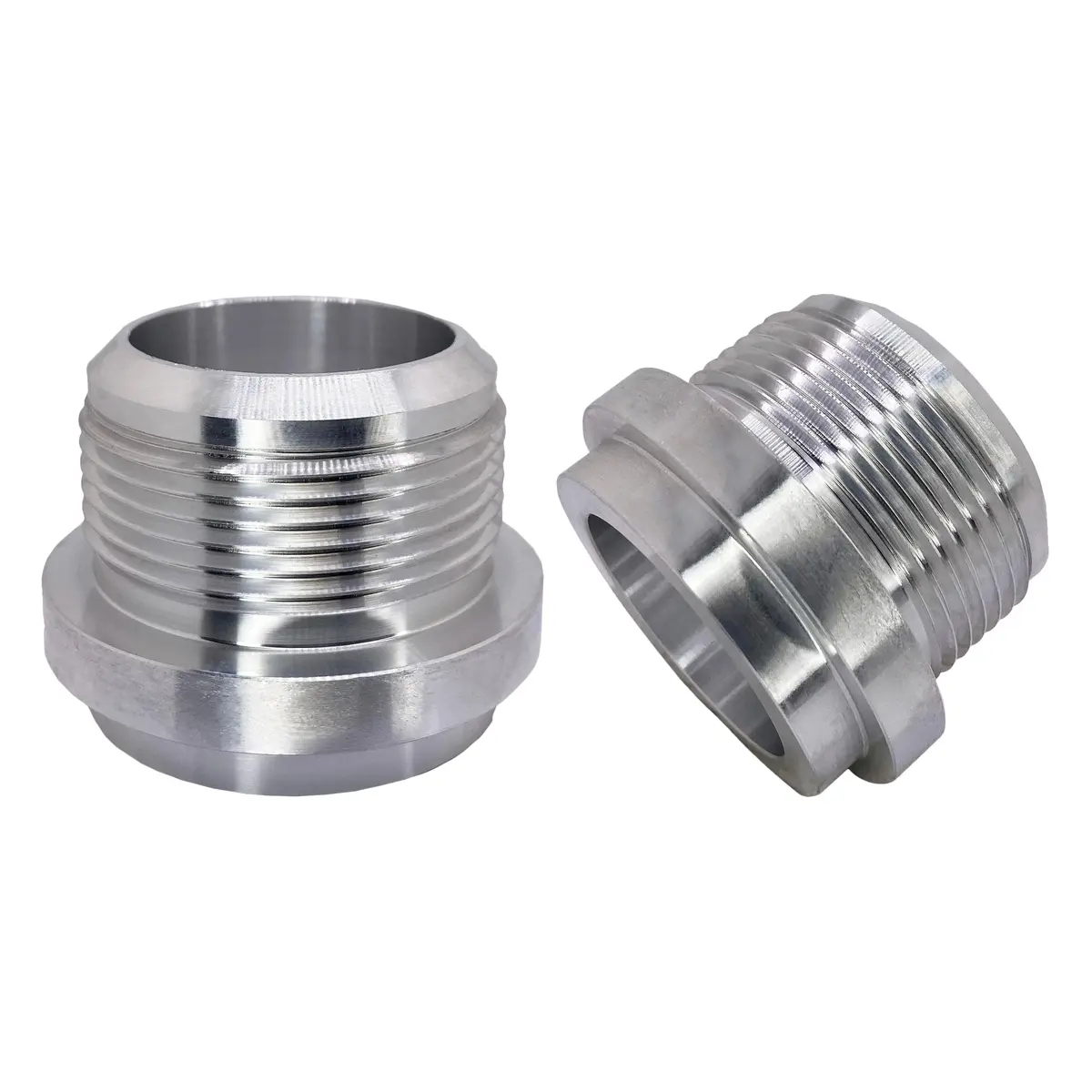

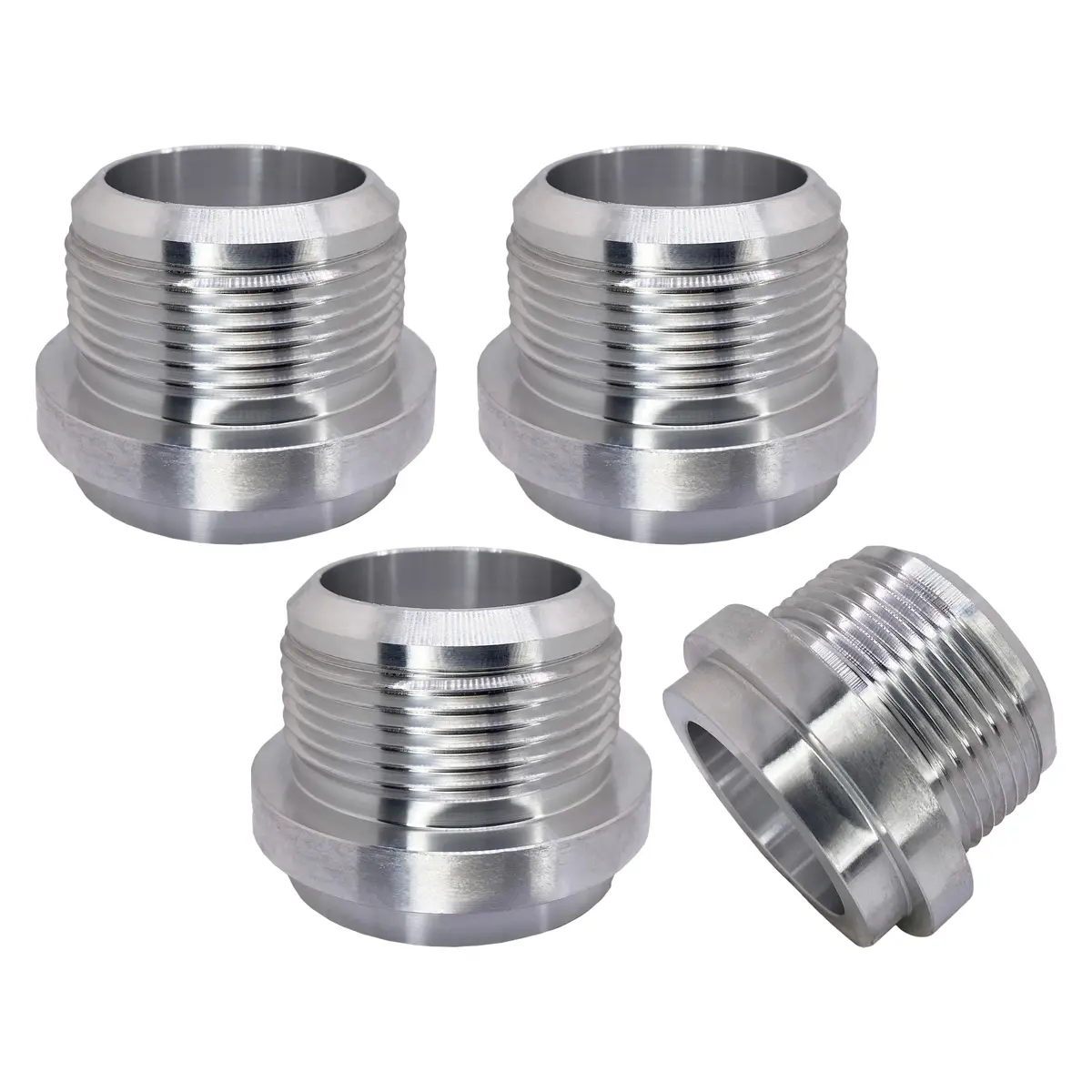

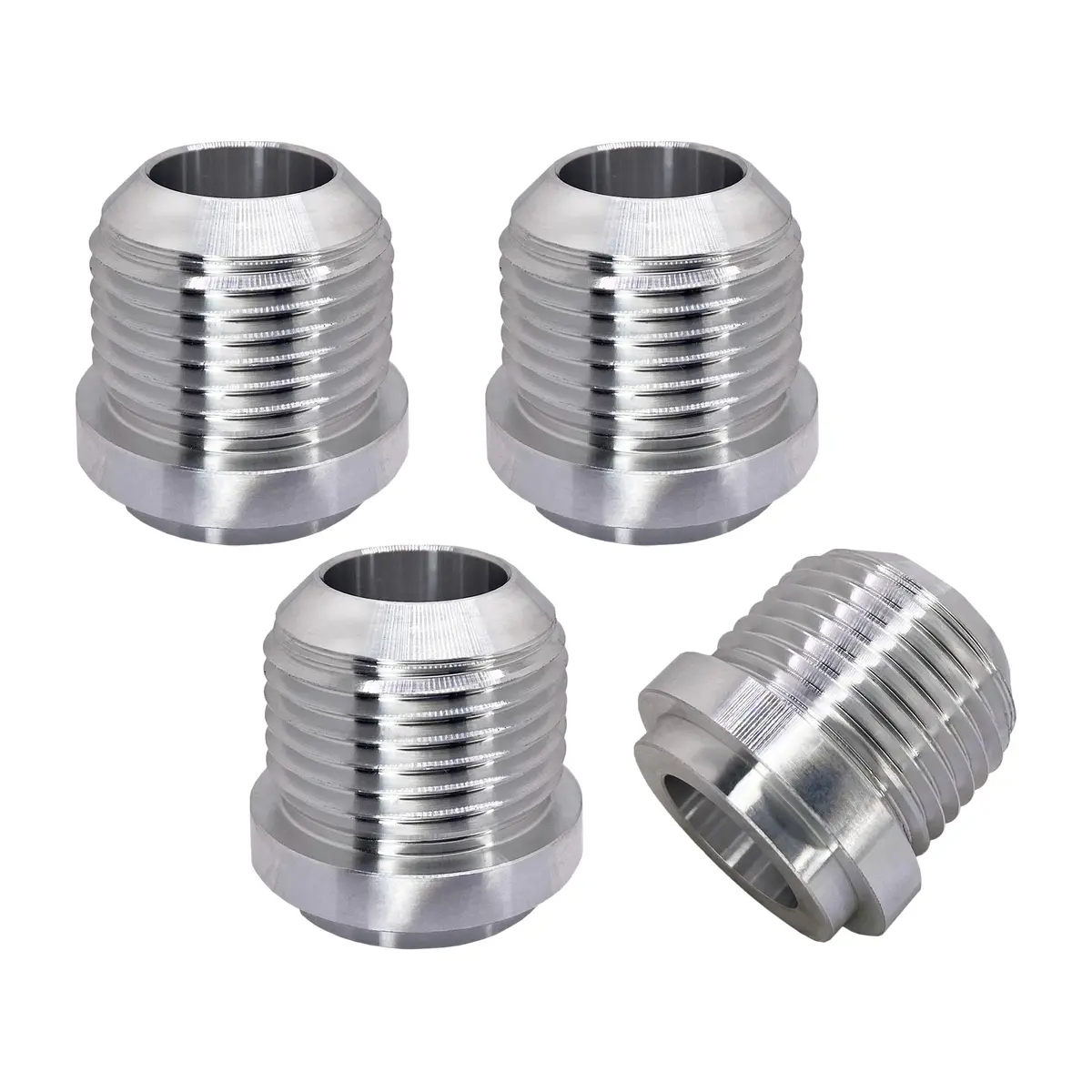

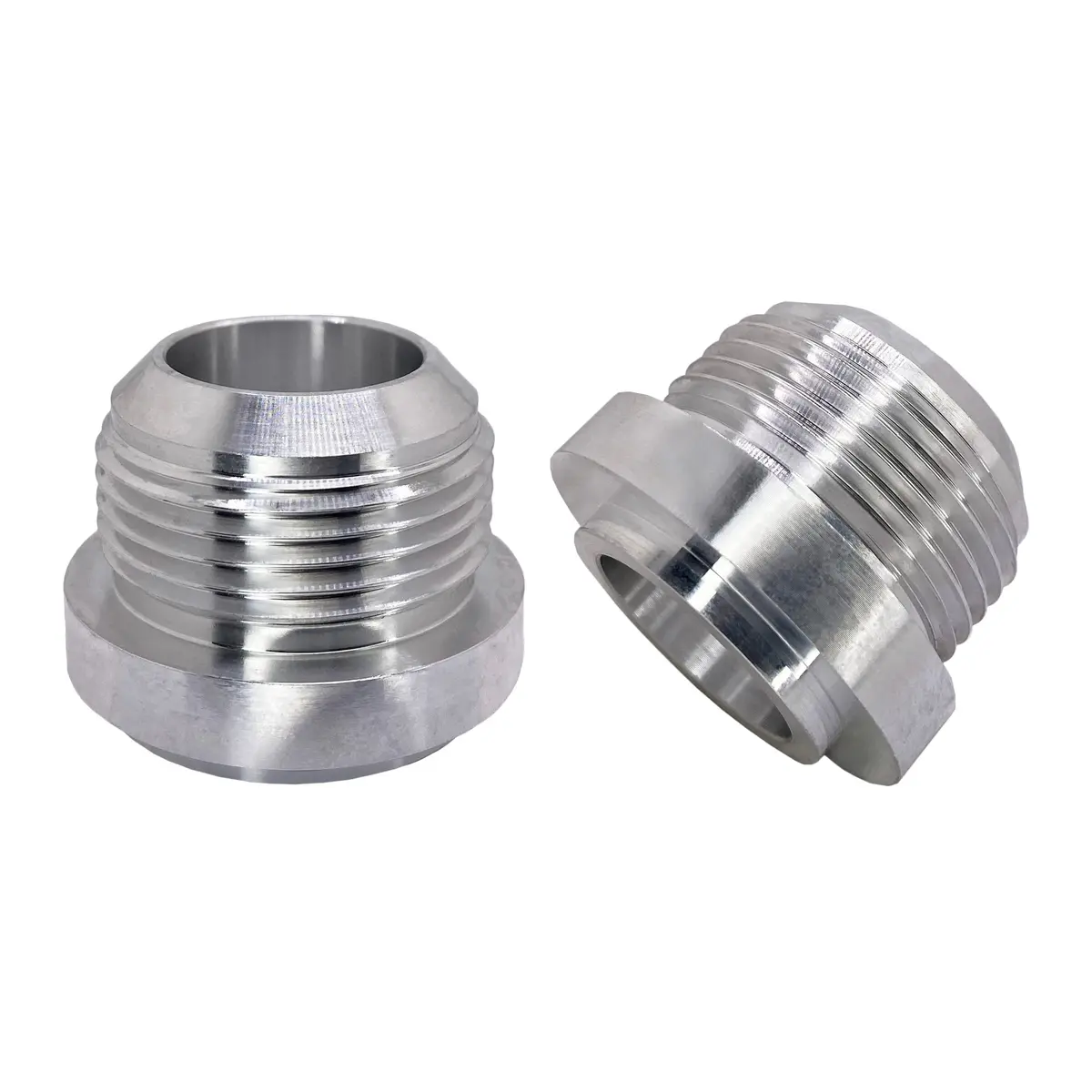

• 2 and 4 Pack, JIC – 3AN, 4AN, 6AN, 8AN, 10AN, 12AN, 16AN, 20AN Male Thread Weld On Bung
• Made of high quality lightweight 6061-T6 aluminum, -65℉ to 252℉, 1000 PSI

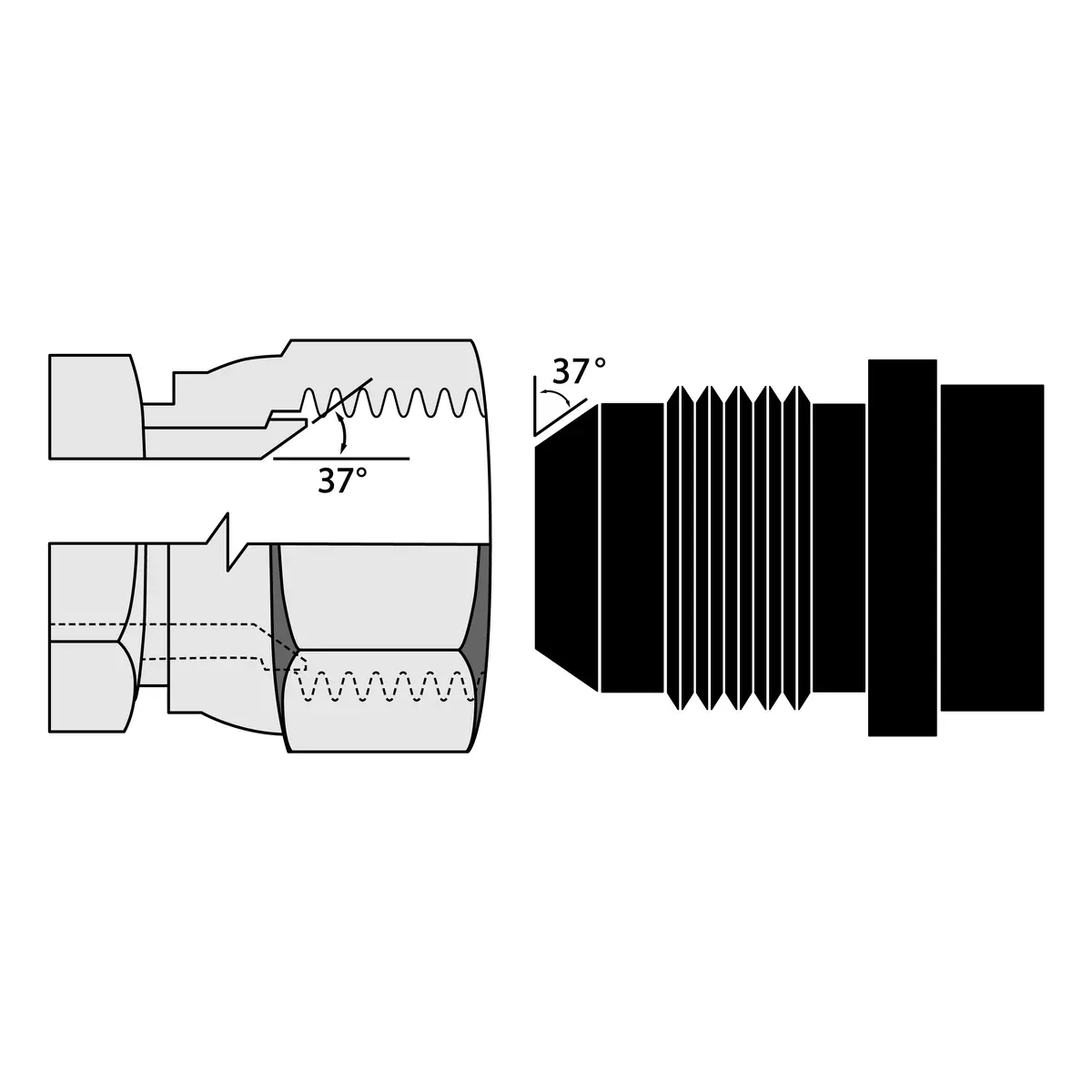

• Flare on AN thread is made to seal at a 37 degree angle

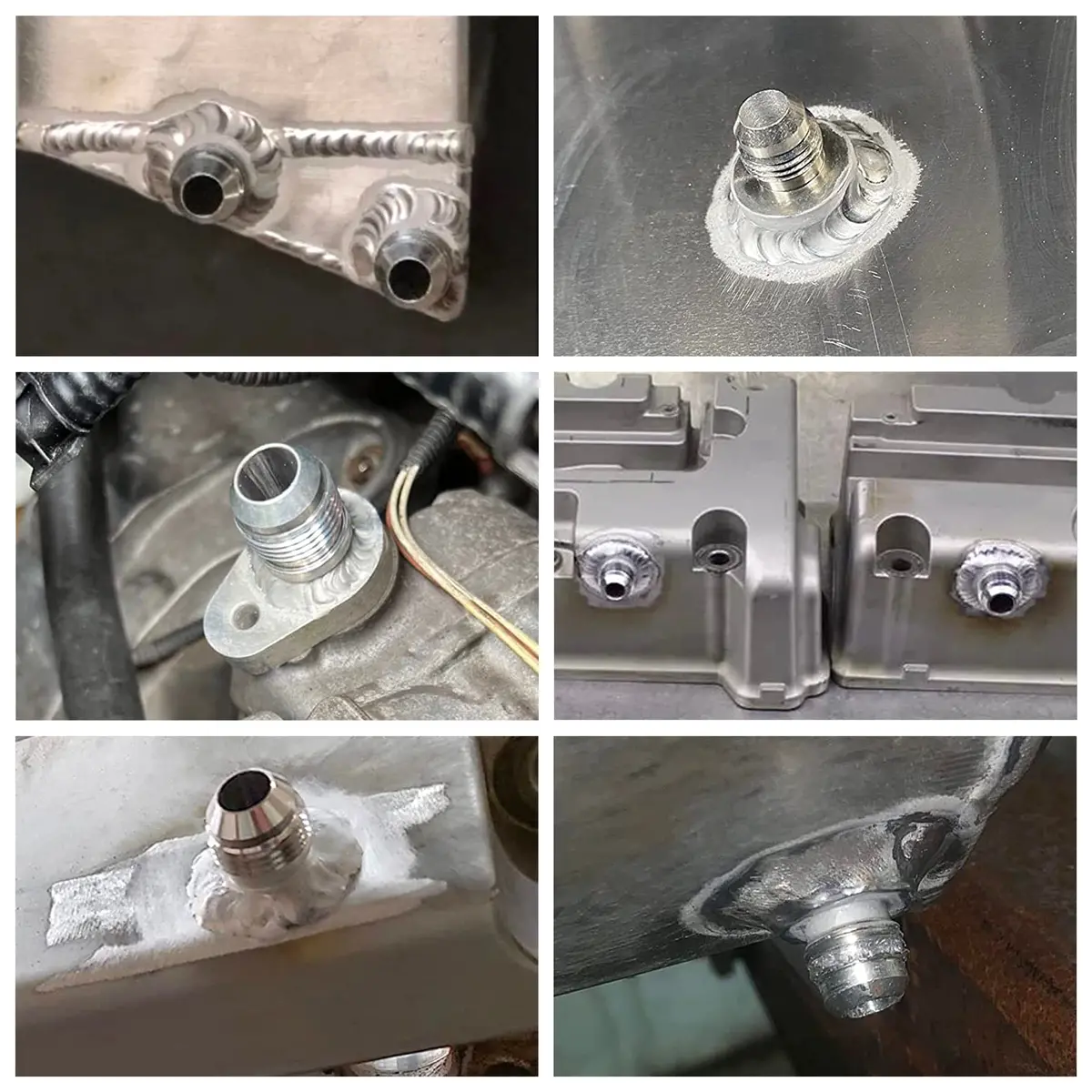

• For use on many automotive applications such as fuel, oil, gas, water, coolant and more
• Used when trying to attach AN lines to areas that do not have an AN flare already
• MUST be welded on

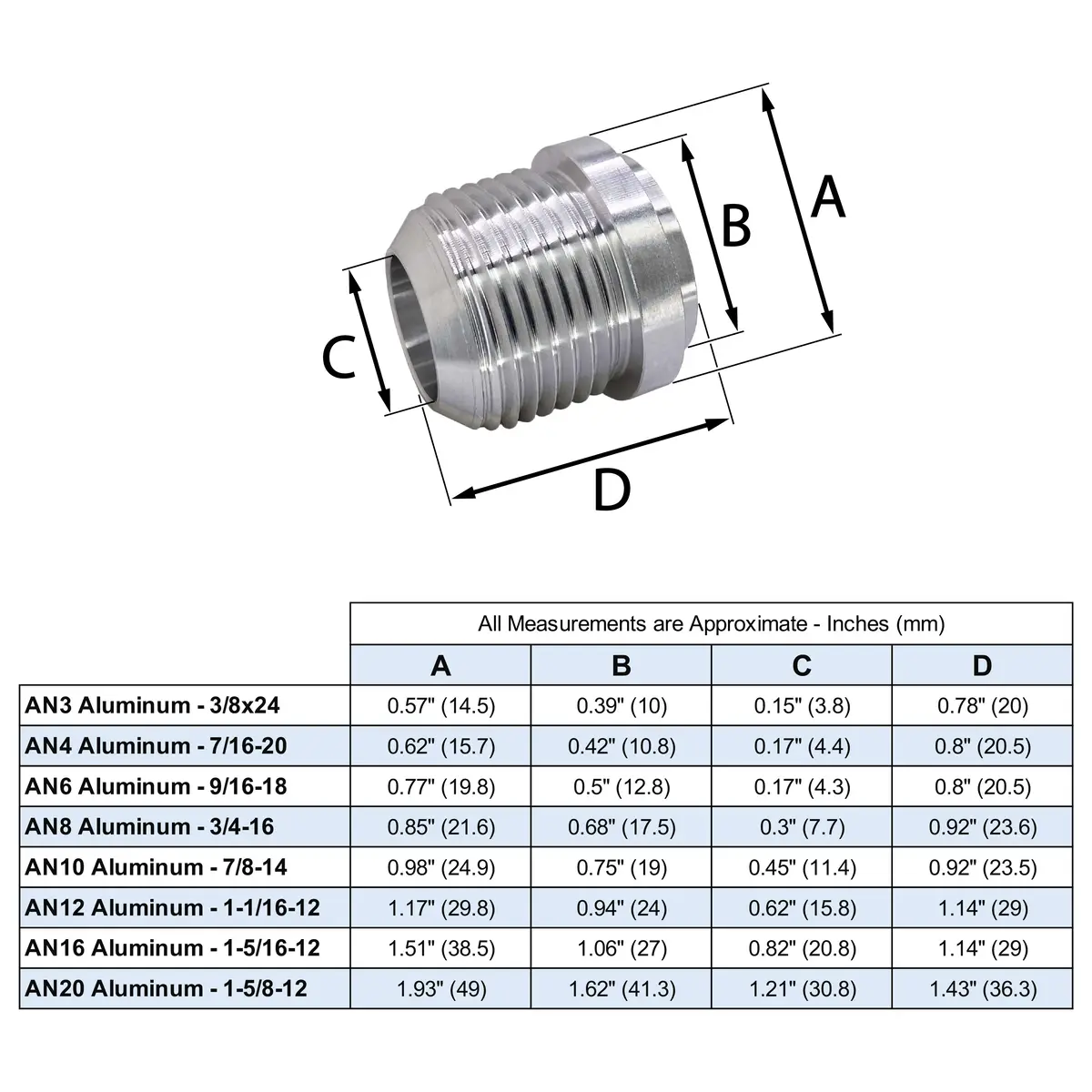

Bung Sizes:

• JIC – 3 AN, 3/8×24 – 3/8 inch thread length, 24 threads per inch
• JIC – 4 AN, 7/16×20 – 7/16 inch thread length, 20 threads per inch
• J IC – 6 AN, 9/16×18 – 9/16 inch thread length, 18 threads per inch
• J IC – 8 AN, 3/4×16 – 3/4 inch thread length, 16 threads per inch
• J IC – 10 AN, 7/8×14 – 7/8 inch thread length, 14 threads per inch
• J IC – 12 AN, 1-1/16×12 – 1-1/16 inch thread length, 12 threads per inch
• J IC – 16 AN, 1-5/16×12 – 1-5/16 inch thread length, 12 threads per inch
• J IC – 20 AN, 1-5/8×12 – 1-5/8 inch thread length, 12 threads per inch
