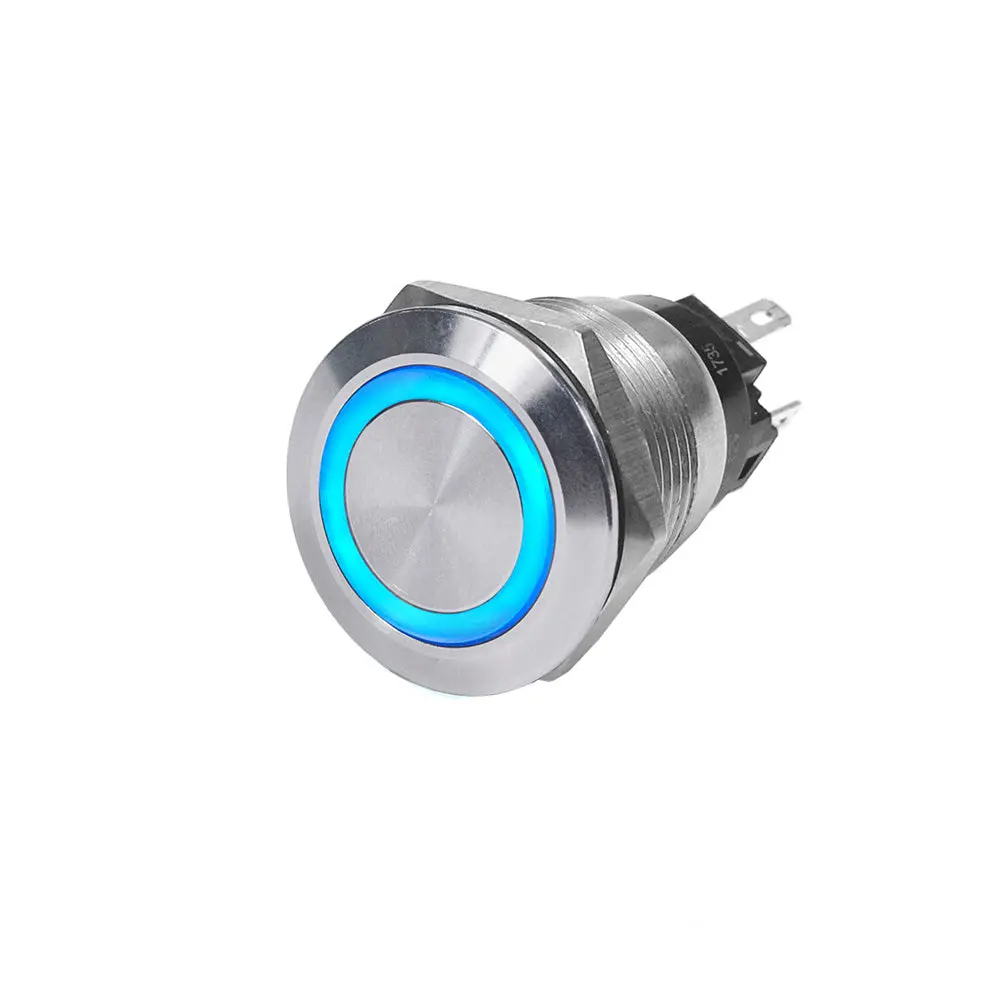

Blue Sea Systems 4160 Stainless Push Button Switch – Blue LED, Maintained (Off-On), 10A [4160]

Description

4160 SS Push Button Switch – Off-On – Blue – 10A

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

• Action: OFF-ON
• Amperage: 10A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature: -55° C
• Maximum Storage Temperature: 85° C
• Illumination: Independent – Separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 – 0.110inch Quick Connect terminals

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Stainless
• Action: On/Off
• Box Dimensions: 2″H x 3″W x 5″L WT: 0.05 lbs
• UPC: 632085041601
