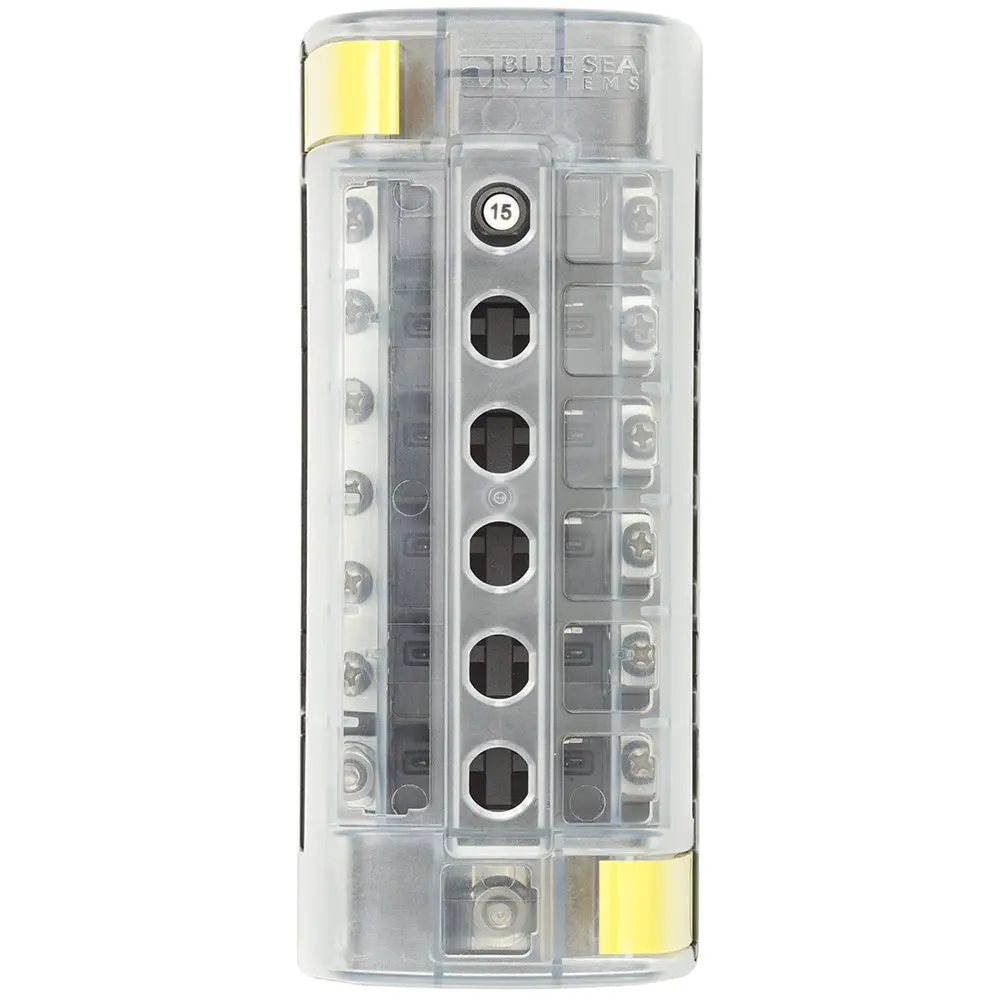

Blue Sea Systems 5052 ST CLB Circuit Breaker Block – 6-Position with Integrated Negative Bus

Description

ST CLB Circuit Breaker Block – 6 Position w/Negative Bus
Features

• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals
• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
• Easy to open clip on cover
• Breakouts allow wire access in two directions
• Accepts ring terminals
• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63″(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69″(169.93 mm)
Weight: 0.75lb (0.34 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 100/32a
• Box Dimensions: 3″H x 5″W x 11″L WT: 0.9 lbs
• UPC: 632085050528
