Scanstrut DS-H10-Blk Horizontal Cable Gland – Black, 10mm Diameter

Description

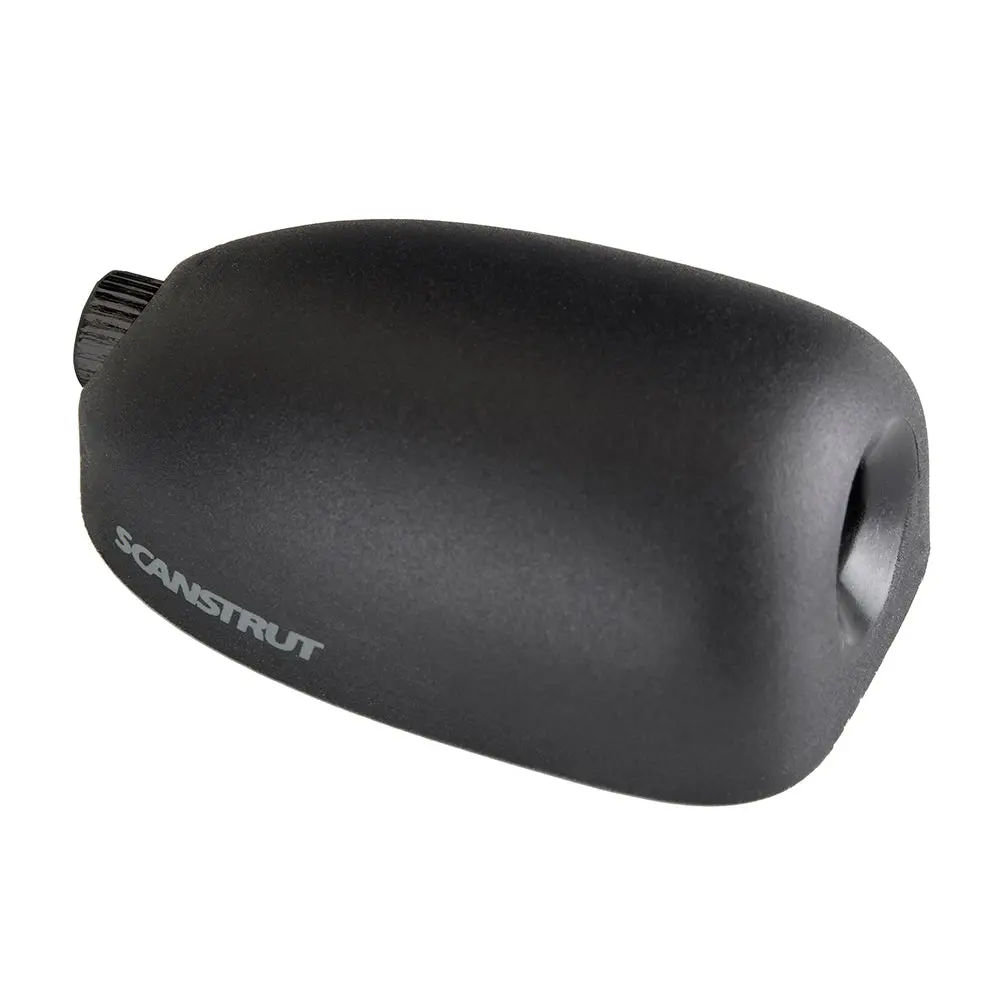

DS-H10-BLK Horizontal Cable Seal – Black

This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.

Features:

• Watertight installation – 100% waterproof with an IPX68 rating
• Easy and reliable installation – each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors – split-seal option does not require connector removal during install.
• The low-profile construction is impact resistant and provides extra protection from water.

Technical Specifications:

• Fits cable size (diameter) – .24″ to .39″ (6 – 10 mm)
• Height – 1.06″ (27 mm)
• Width – 1.75″ (44.5 mm)
• Color – Black
• Orientation – Horizontal
• Material – Stainless Steel

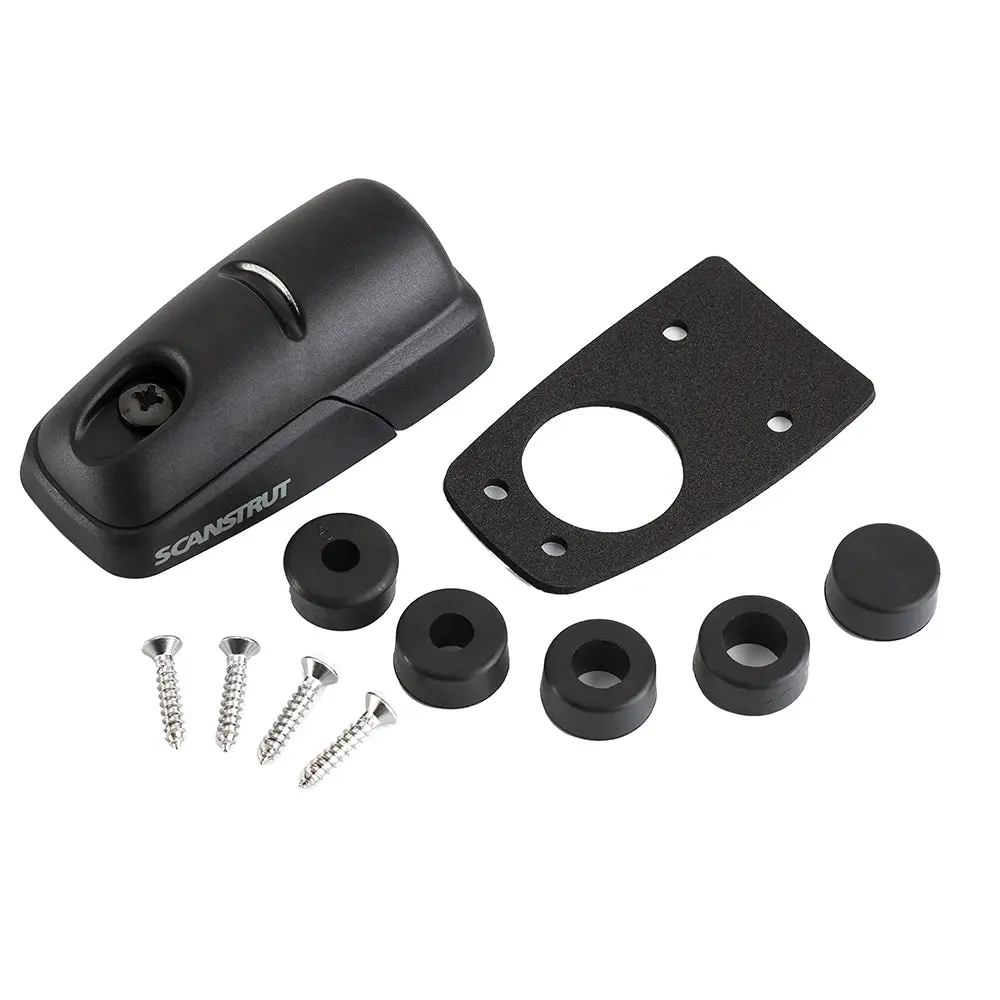

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Type: Deck Seal
• Box Dimensions: 2″H x 4″W x 9″L WT: 0.35 lbs
• UPC: 5060114797406

Quick Guide (pdf)
