Description
The Twin Swivel Block can fit multiple rope sizes ranging from 1/4″ to 3/8″. The body of the block is made from grade 304 stainless steel and the removable sheave is made from grade 316 stainless steel for corrosion resistance and durability. It is ideal for marine and industrial rigging applications.

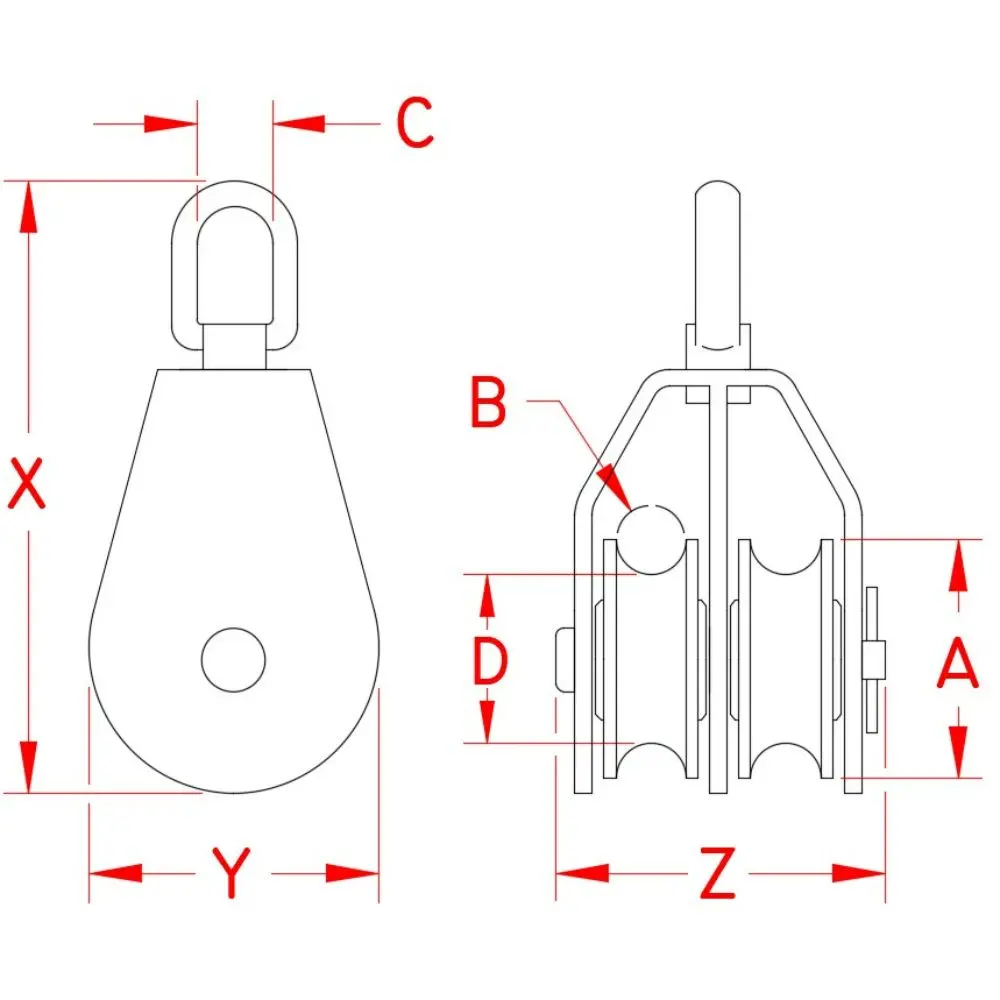

| ITEM | A | B (rope size) |
C | D | X | Y | Z | WLL (lb) |
WT (lb) |
Sheave (part #) |
|---|---|---|---|---|---|---|---|---|---|---|
| S0404-0025 | 1.25″ | 1/4″ | 0.58″ | 1.00″ | 3.28″ | 1.18″ | 1.86″ | 400 | 0.50 | S0410-0707 |
| S0404-0038 | 1.75″ | 5/16″ | 0.63″ | 1.44″ | 3.72″ | 1.72″ | 2.11″ | 600 | 0.78 | S0410-0808 |
| S0404-0050 | 2.25″ | 3/8″ | 0.82″ | 1.88″ | 5.00″ | 2.15″ | 2.52″ | 1,000 | 1.53 | S0410-1010 |
