Description
The Swivel Eye Block can fit multiple rope sizes. The block body is made from grade 304 and the removable sheave is made from grade 304 or 316 stainless steel for maximum corrosion resistance and durability. It is ideal for rigging applications.

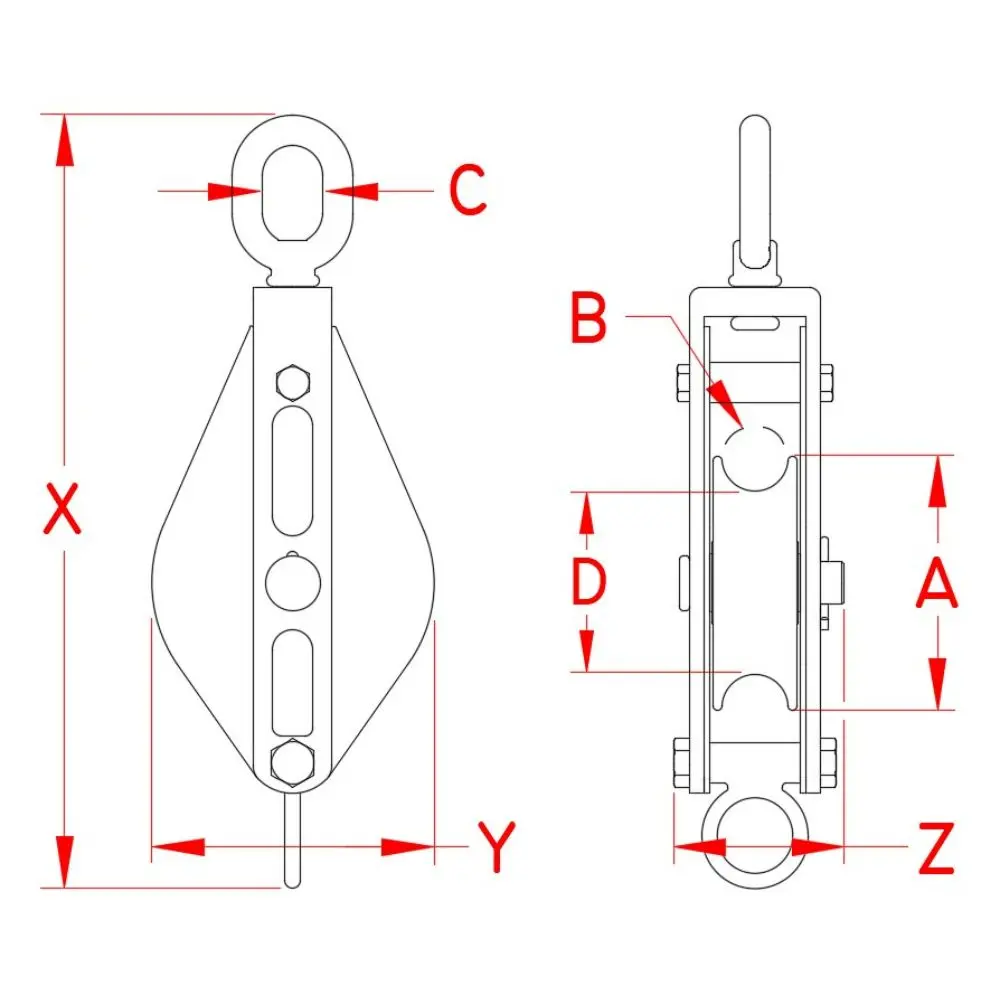

| ITEM | A | B (rope size) |
C | D | X | Y | Z | WLL (lb) |
WT (lb) |
Sheave (part #) |
|---|---|---|---|---|---|---|---|---|---|---|
| S0423-E075 | 3″ | 1/2″ | 0.95″ | 2.12″ | 10.00″ | 3.26″ | 2.30″ | 1,400 | 2.22 | S0400-0075 |
| S0423-E100 | 4″ | 5/8″ | 0.95″ | 2.91″ | 12.50″ | 4.45″ | 2.40″ | 2,000 | 4.08 | S0400-0100 |
| S0423-E125 | 5″ | 3/4″ | 0.95″ | 4.05″ | 14.00″ | 5.51″ | 2.60″ | 3,000 | 5.38 | S0400-0125 |
