Description
The Long Quick Link is available in a range of sizes to ensure a perfect fit for every project. This link is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and linking applications.
Â

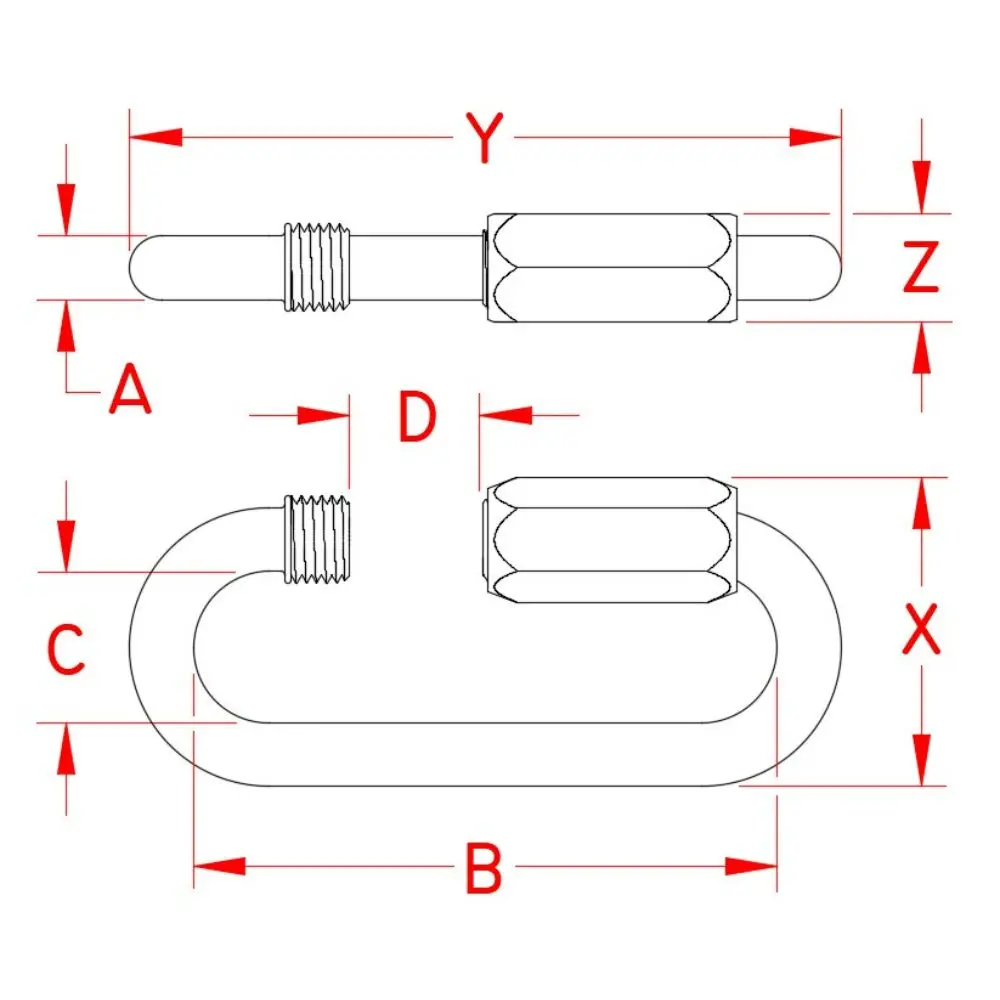

| ITEM | A (size) |
B | C | D | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|
| S0160-LA03 | 1/8″ | 1.50″ | 0.34″ | 0.34″ | 0.77″ | 1.81″ | 0.27″ | 200 | 0.02 |
| S0160-LA04 | 5/32″ | 1.76″ | 0.46″ | 0.47″ | 0.86″ | 2.04″ | 0.31″ | 300 | 0.03 |
| S0160-LA05 | 3/16″ | 2.05″ | 0.52″ | 0.52″ | 1.00″ | 2.47″ | 0.35″ | 880 | 0.05 |
| S0160-LA06 | 1/4″ | 2.31″ | 0.58″ | 0.58″ | 1.15″ | 2.73″ | 0.42″ | 1,200 | 0.09 |
| S0160-LA08 | 5/16″ | 2.83″ | 0.67″ | 0.67″ | 1.48″ | 3.48″ | 0.53″ | 2,100 | 0.19 |
| S0160-LA09 | 3/8″ | 3.03″ | 0.75″ | 0.75″ | 1.62″ | 3.76″ | 0.57″ | 2,700 | 0.26 |
| S0160-LA10 | 7/16″ | 3.38″ | 0.81″ | 0.81″ | 1.80″ | 4.09″ | 0.63″ | 3,500 | 0.34 |
| S0160-LA12 | 1/2″ | 3.94″ | 0.92″ | 0.92″ | 2.05″ | 4.92″ | 0.71″ | 4,800 | 0.57 |
| S0160-LA14 | 9/16″ | 4.50″ | 1.05″ | 1.05″ | 2.35″ | 5.75″ | 0.86″ | 6,800 | 0.96 |
| S0160-LA16 | 5/8″ | 5.08″ | 1.16″ | 1.16″ | 2.65″ | 6.40″ | 1.02″ | 8,800 | 1.43 |
| S0160-LA18 | 3/4″ | 5.53″ | 1.28″ | 1.28″ | 3.06″ | 6.94″ | 1.19″ | 10,800 | 2.00 |
