Description
The Swivel Bolt Snap is made from grade 316 stainless steel for maximum corrosion resistance and durability. These stainless steel Swivel Bolt Snaps are available in multiple sizes, making them ideal for various marine and industrial applications.

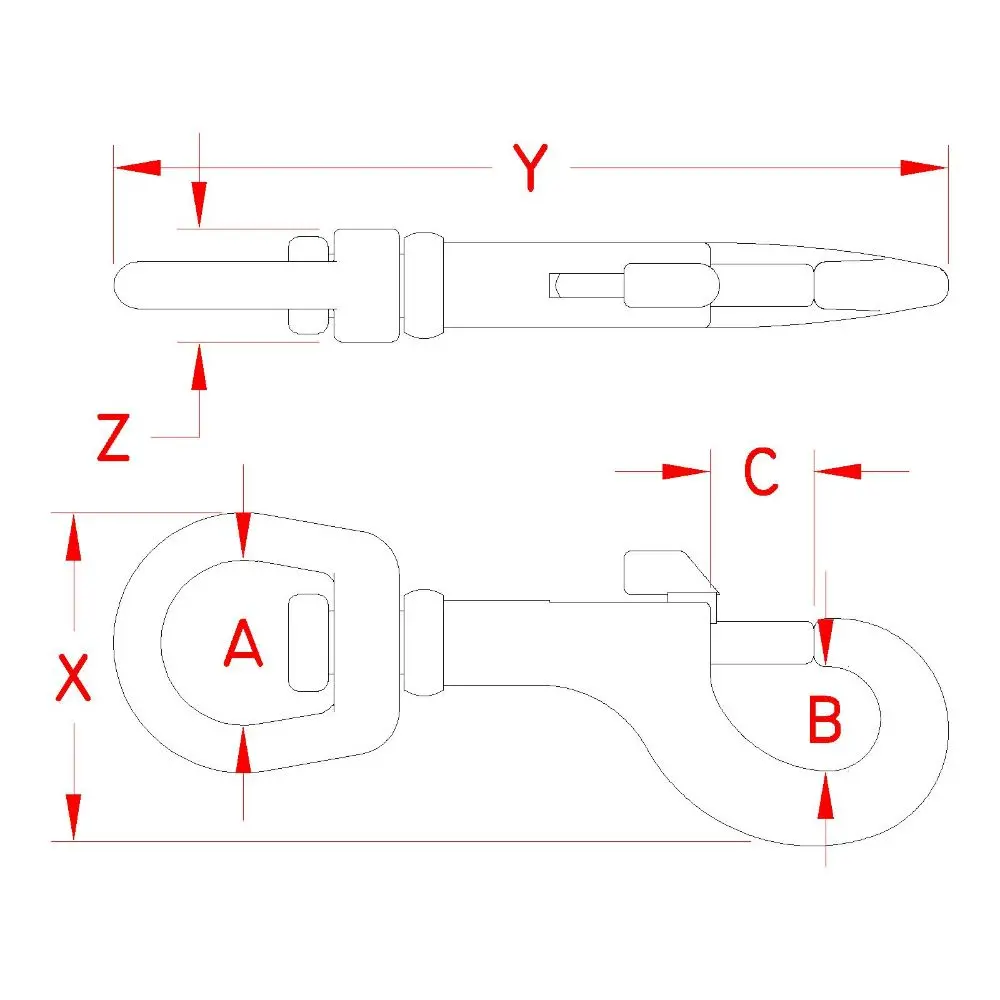

| ITEM | A (size) |
B | C | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|
| S0176-0000 | 3/8″ | 0.32″ | 0.28″ | 1.00″ | 2.73″ | 0.39″ | 100 | 0.05 |
| S0176-0001 | 1/2″ | 0.36″ | 0.37″ | 1.10″ | 3.07″ | 0.46″ | 200 | 0.08 |
| S0176-0002 | 5/8″ | 0.43″ | 0.36″ | 1.18″ | 3.42″ | 0.46″ | 250 | 0.11 |
| S0176-0003 | 3/4″ | 0.43″ | 0.36″ | 1.20″ | 3.65″ | 0.49″ | 300 | 0.12 |
| S0176-0004 | 1-1/4″ | 0.48″ | 0.53″ | 2.02″ | 4.92″ | 0.66″ | 350 | 0.28 |
