Description
The Swivel Eye Snap is made from grade 316 stainless steel for maximum corrosion resistance and durability. These stainless steel swivel snaps are ideal for various marine and industrial applications.

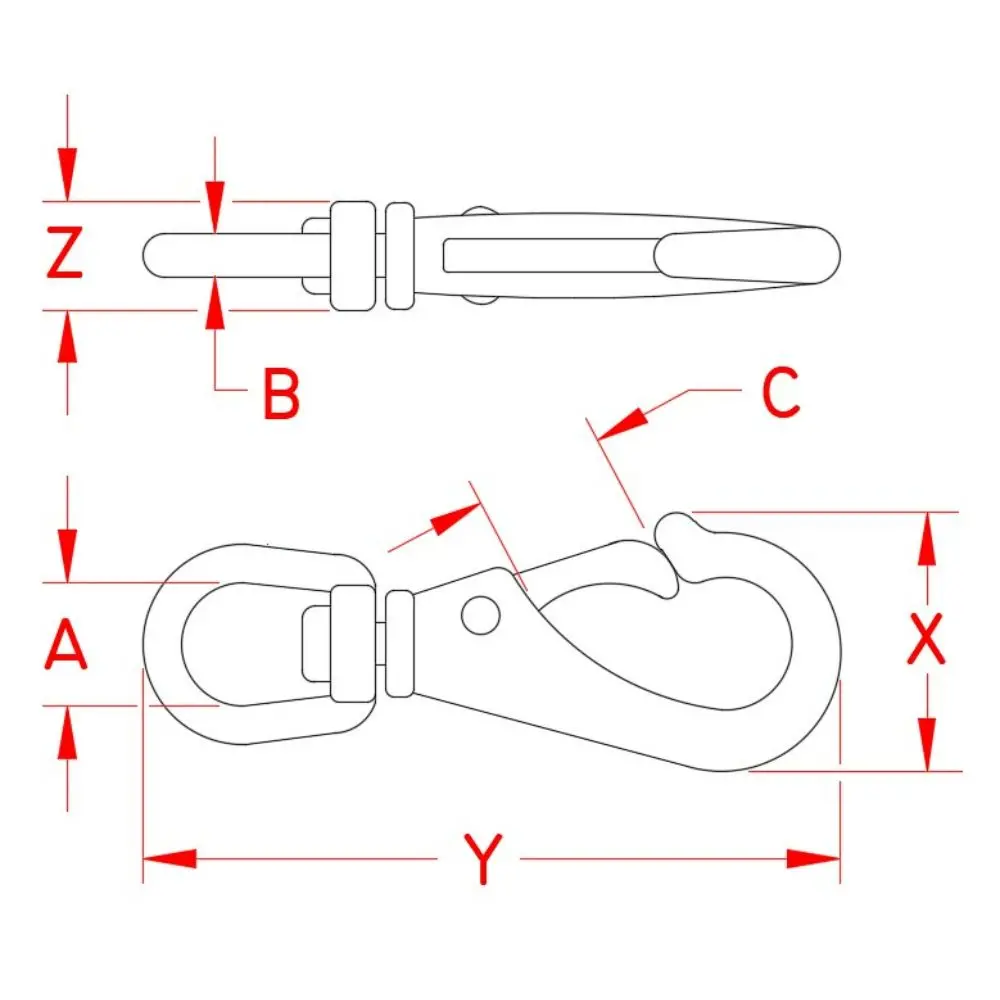

| ITEM | A (size) |
B | C | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|
| S0174-0001 | 5/8″ | 0.20″ | 0.40″ | 1.21″ | 3.43″ | 0.61″ | 100 | 0.14 |
| S0174-0002 | 3/4″ | 0.24″ | 0.47″ | 1.39″ | 3.87″ | 0.77″ | 200 | 0.21 |
| S0174-0003 | 7/8″ | 0.27″ | 0.51″ | 1.70″ | 4.57″ | 0.77″ | 300 | 0.35 |
