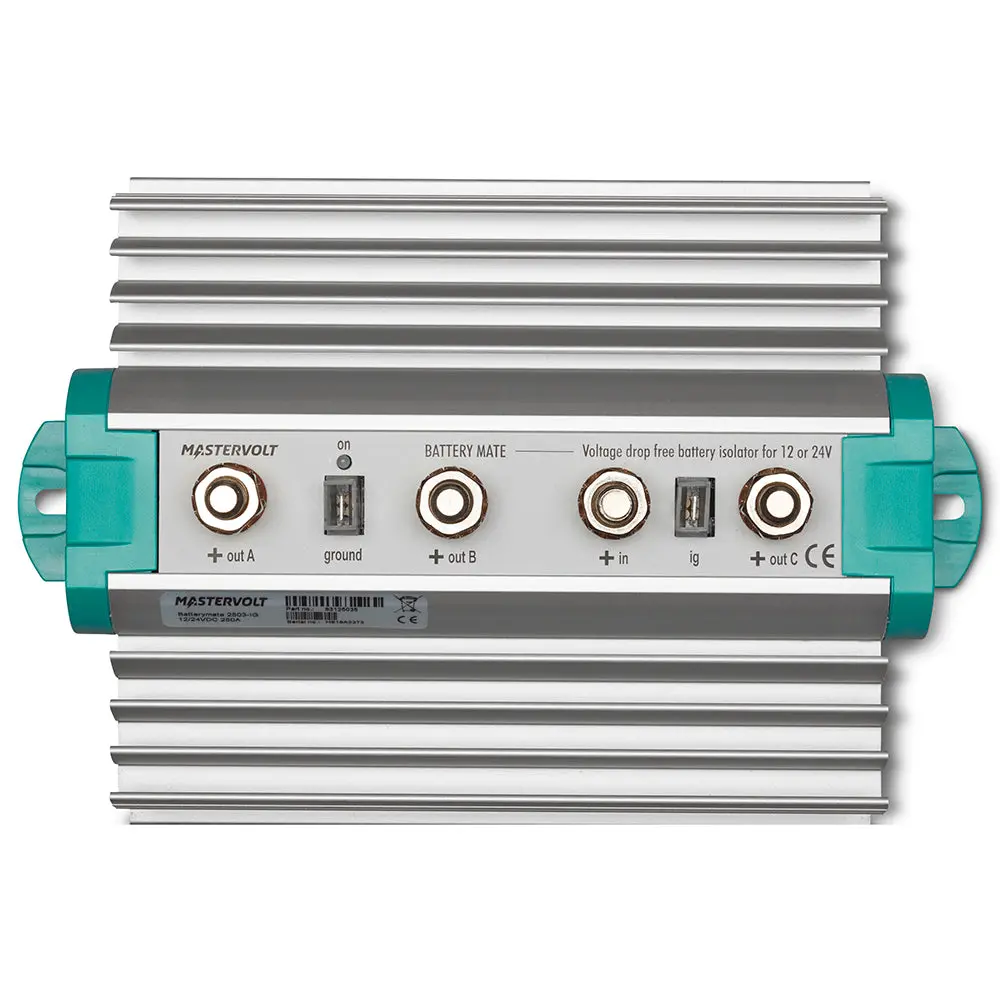

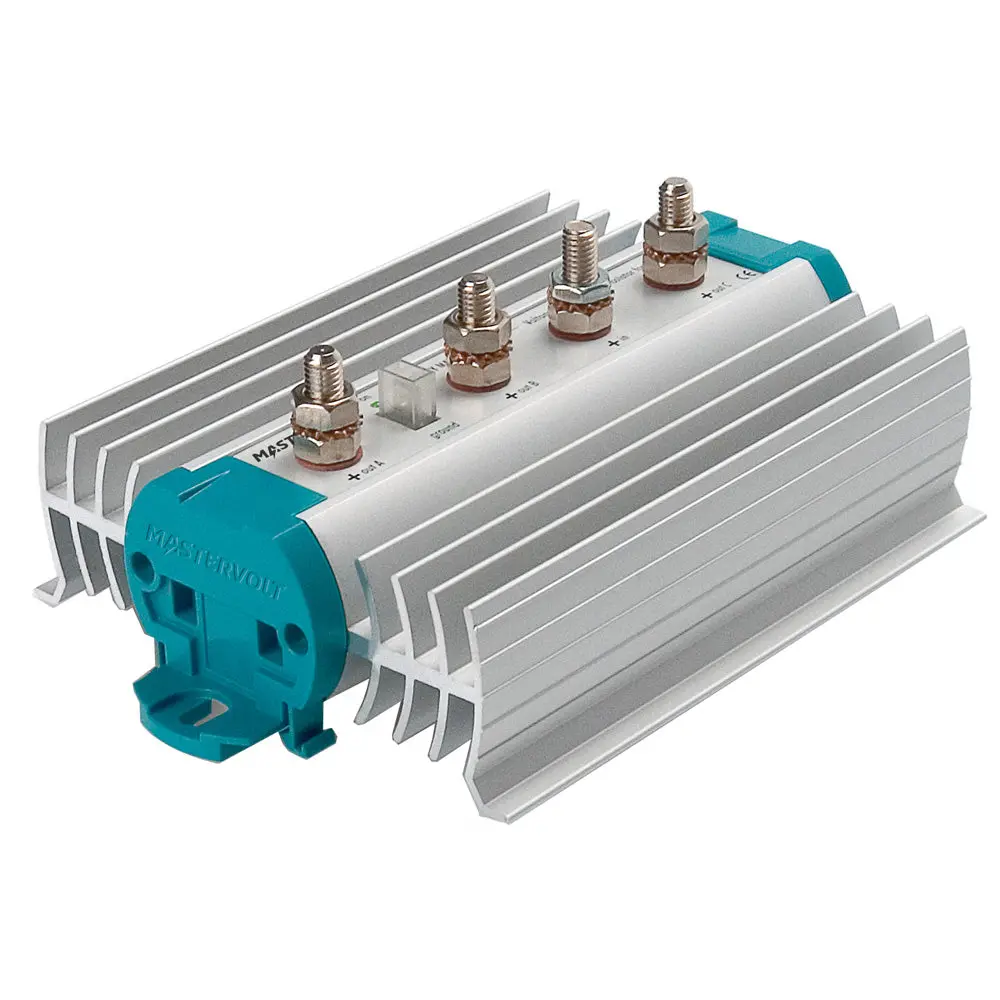

Mastervolt BatteryMate 1603 Isolator – 120A, Triple-Bank DC Distribution [83116035]

Description

While battery isolators are conventional diode splitters, the Battery Mate’s technology is electronic and includes mosfets (transistors). Its components compensate for variations in voltage and ensure that charging continues at the right voltage level, even with several battery banks. The input side on the Battery Mate is connected to the alternator and/or battery charger, while two batteries are connected to the output side. The Battery Mate is easy to install on a DIN rail (industry standard).The Mastervolt Battery Mate can be used in any application even if the standard alternator need external excitation or voltage sensing. In this case the additional IG contact can be connected.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Continuous Amperage: 120
• Box Dimensions: 4″H x 6″W x 10″L WT: 2.7 lbs
• UPC: 816882021046

Quick Guide (pdf)
Owner’s Manual (pdf)
